A SERIESLiFePO4
MODEL: lite EU A300S · Series: A Series Mini ESS

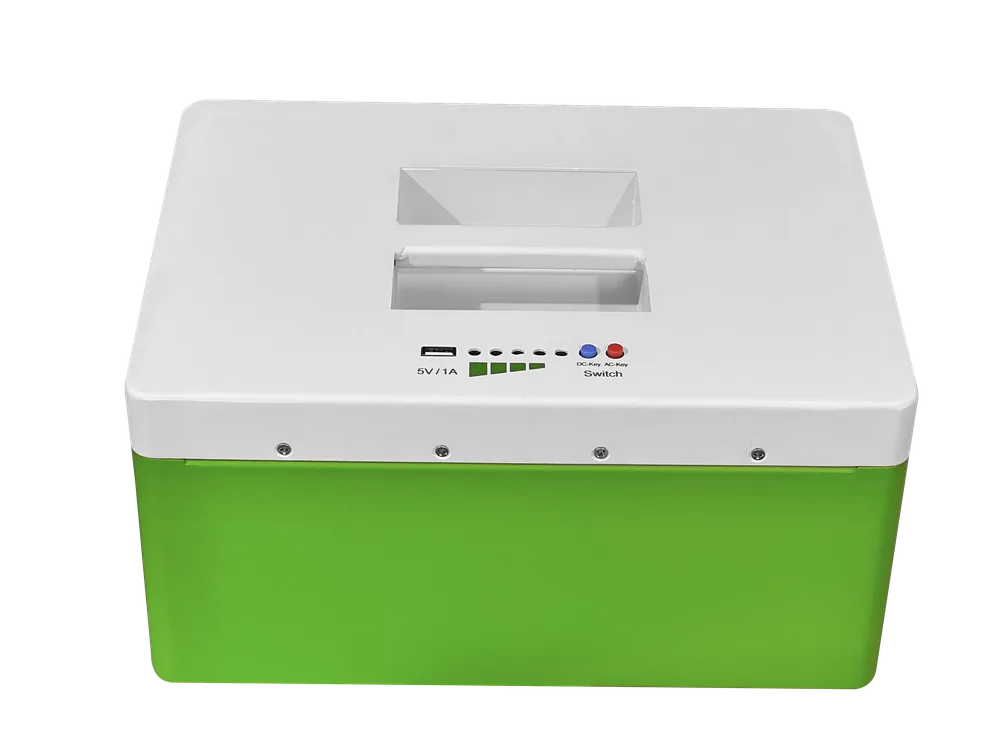

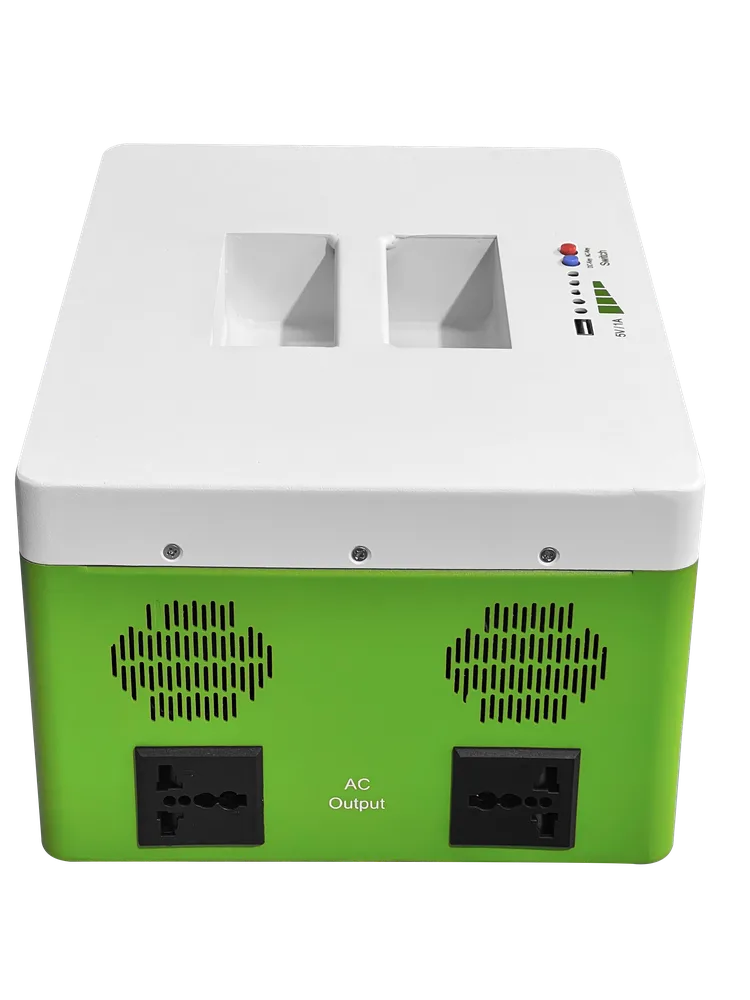

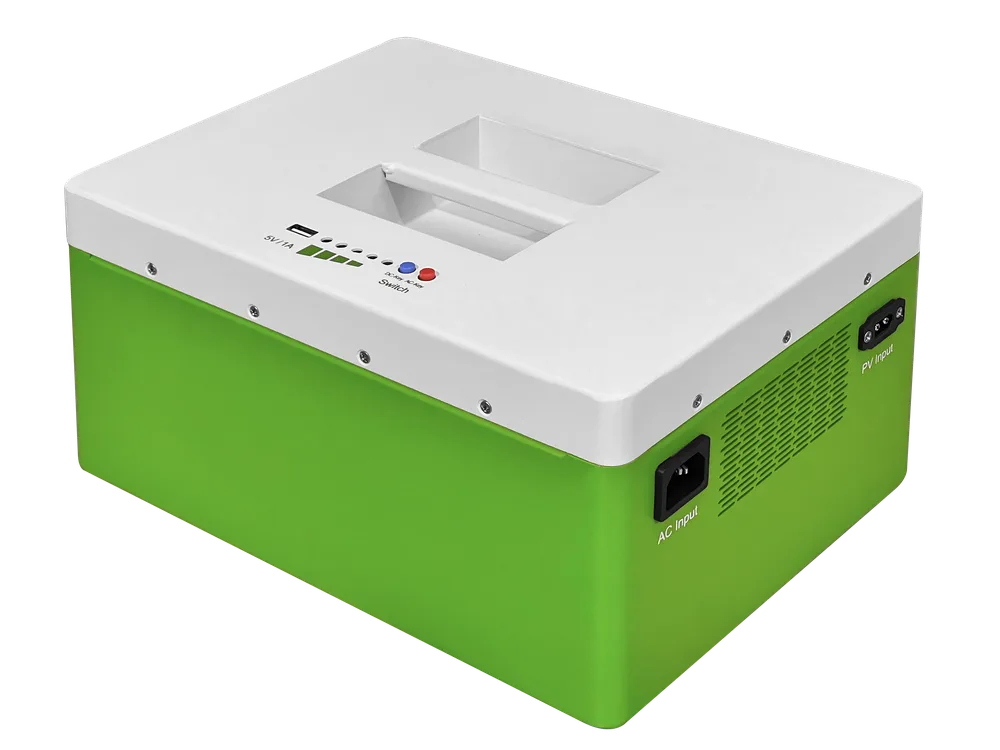

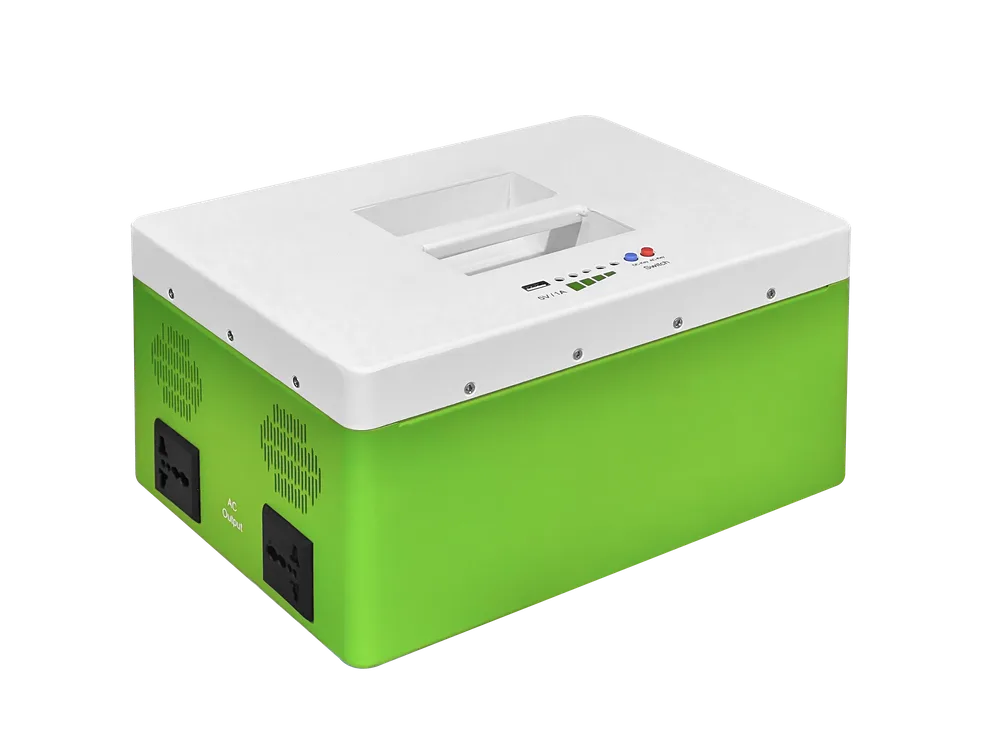

lite EU A300S
The lite EU A300S is an integrated Mini ESS for portable home backup. Rated AC output is 300W pure sine wave at 220V and 50HZ/60HZ. Charging inputs are PV 12-60V, maximum 250W; AC 90-280V, maximum 300W. Interfaces: USB-A: 2.0 Charging port; USB-C: PD 20W Fast charge. Use it with appliances and digital devices whose combined demand stays within 300W.
AC VOLTAGE220V
RATED OUTPUT300W
PV MAX INPUT250W
CELL CHEMISTRYLiFePO4
SOURCING TERMS
Direct manufacturer20-ft containerMOQ PER MODEL
250,000 unitsANNUAL CAPACITY
20,000 unitsMONTHLY OUTPUT
Sampling and production lead times are confirmed per enquiry.
Confirm model MOQCompare modelsProduct documentationlite EU A300S Product ManualEnglish PDF · Opens in a new tabView or download
✓ LiFePO4 cells✓ Pure sine wave output✓ Solar + AC charging
Technical specifications
A300S specifications
| Parameter | Specification |
|---|---|
| AC output | |
| Rated output | 300W |
| Waveform | Pure Sine Wave |
| AC voltage | 220V |
| AC frequency | 50HZ/60HZ |
| Inverter efficiency | >86% |
| AC socket type | Global Specification |
| USB-A | 2.0 Charging port |
| USB-C | PD 20W Fast charge |
| Battery | |
| Chemistry | LiFePO4 |
| Cycle life | ≥6000 cycles |
| Charging & input | |
| PV input voltage | 12-60V |
| PV max input | 250W |
| AC input range | 90-280V |
| AC max charge | 300W |
| Mains charging efficiency | >95% |
| Charging modes | AC / PV Charger |
| UPS bypass | <50ms |
| Physical | |
| Enclosure | Metal spraying |
| Form factor | Portable |
| Dimensions | 300*220*150mm |
| Net weight | 8.45kg |
| Gross weight | 9.55kg |
| Display | 5 LEDs |
| Environment | |
| Charge temperature | -10~40 ℃ |
| Storage temperature | -15~60℃ |
| Humidity | 20~95%RH |
| Operating noise | <50dB |
| Storage humidity | 5-95%RH |
| Commercial | |
| MOQ | one 20-foot container per model |
| Warranty | 18 months; see order terms |
| Packaging & logistics | |
| Carton dimensions | 310*230*160mm |
