A Series Mini ESSA SERIES

PRODUCT FAMILY

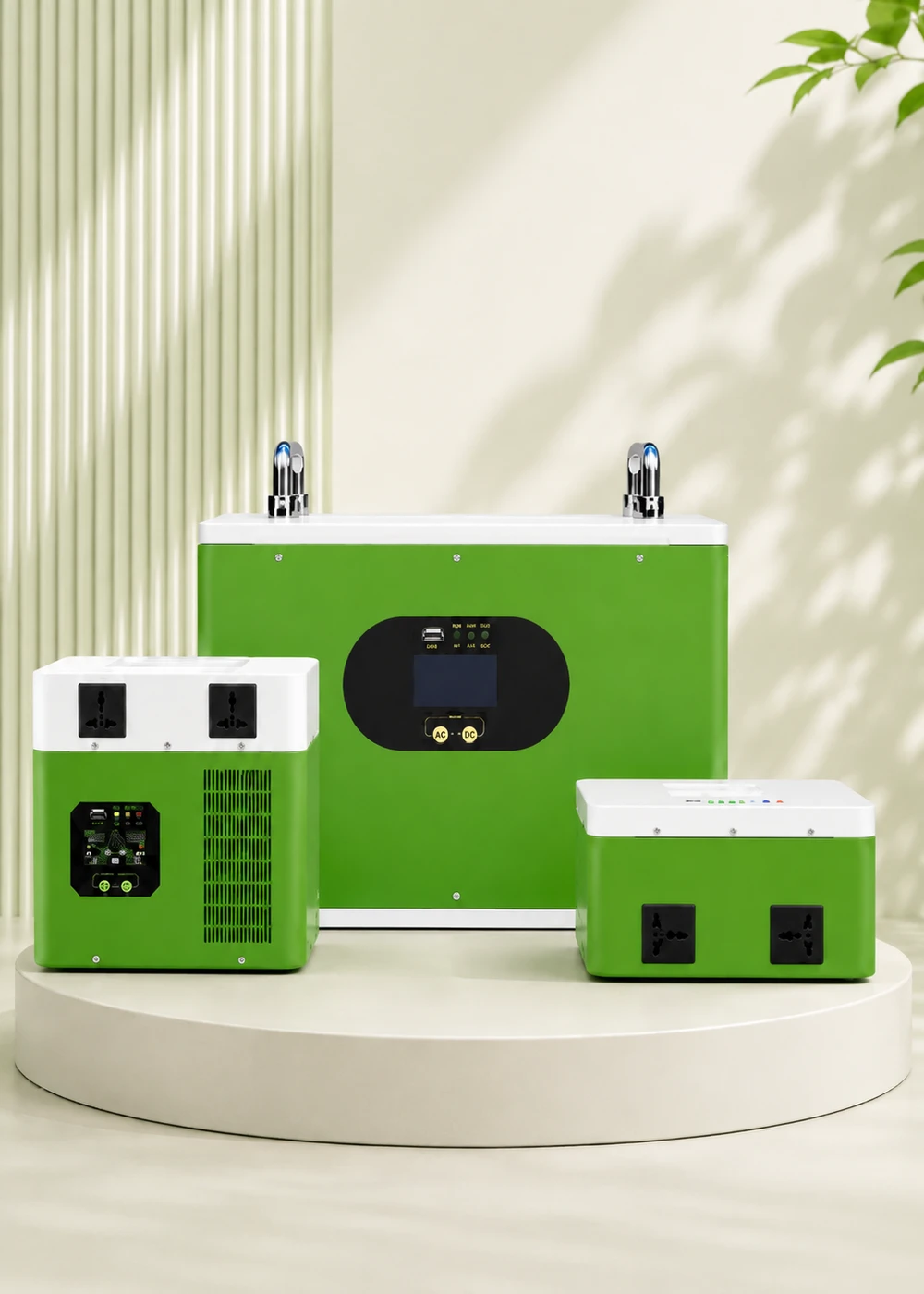

Floor-standing A Series Mini ESS

A Series models provide 300–2000W rated output and 800–4000Wh listed capacity for portable household backup. Compare each model's PV input, AC input and interfaces before selection.

300–2000WOutput range
800–4000WhCapacity range
8Models in this family

Selection notes

How to choose within A Series Mini ESS

Capacity and rated output ladder

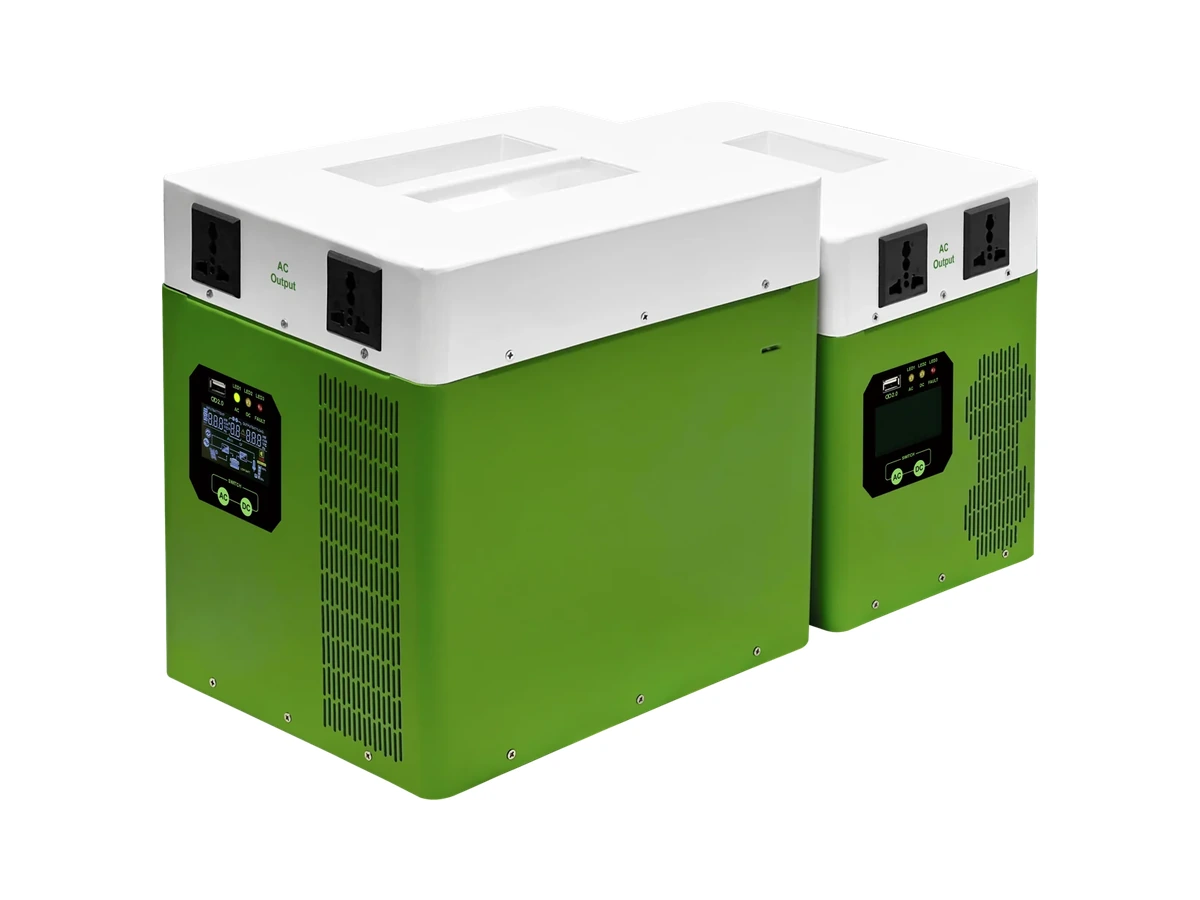

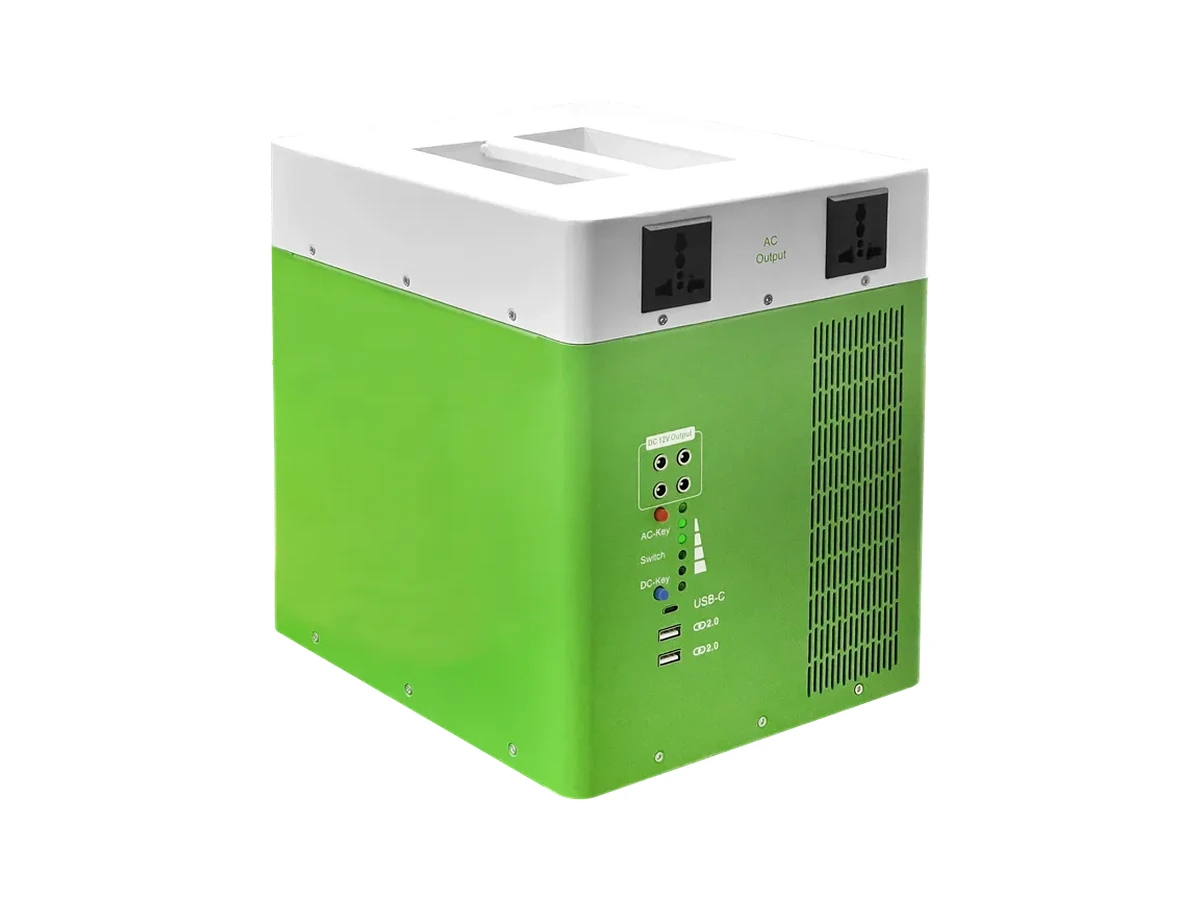

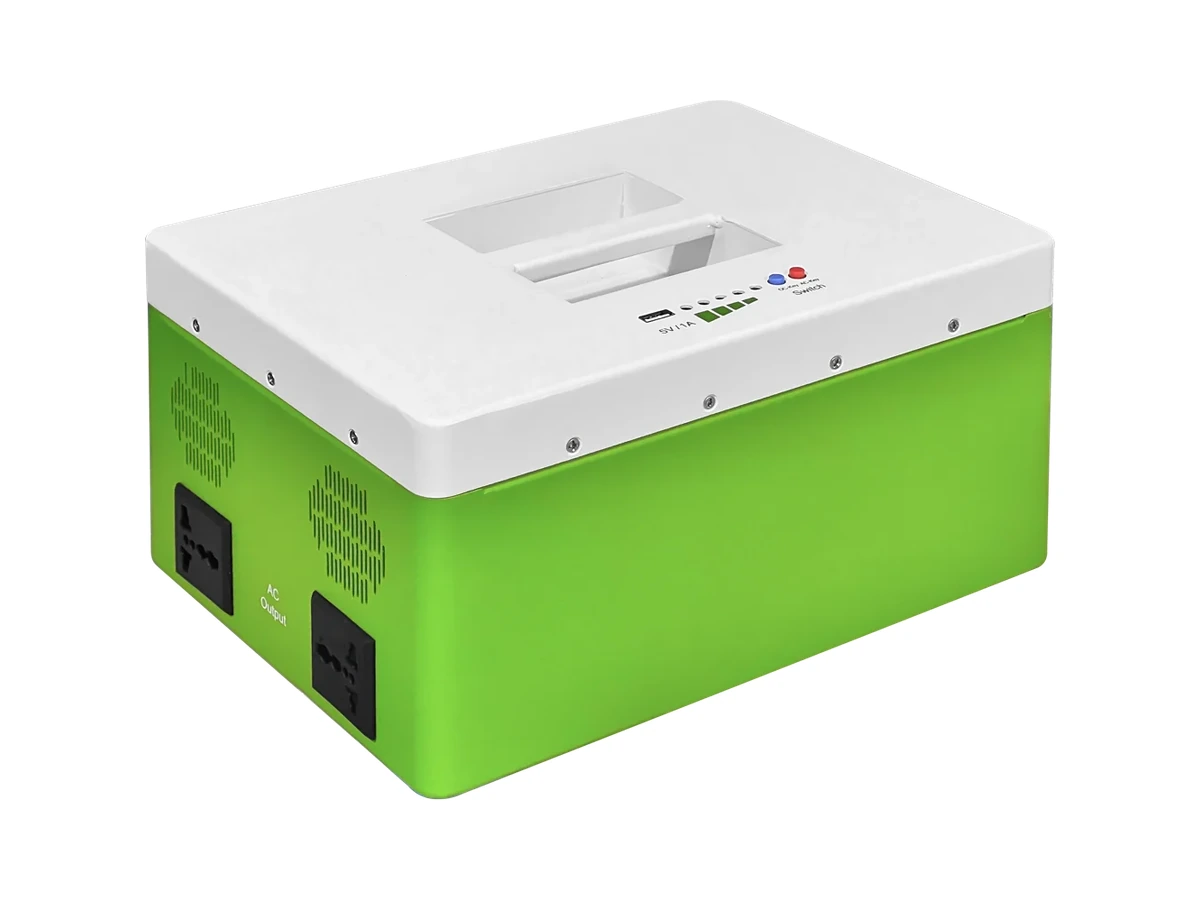

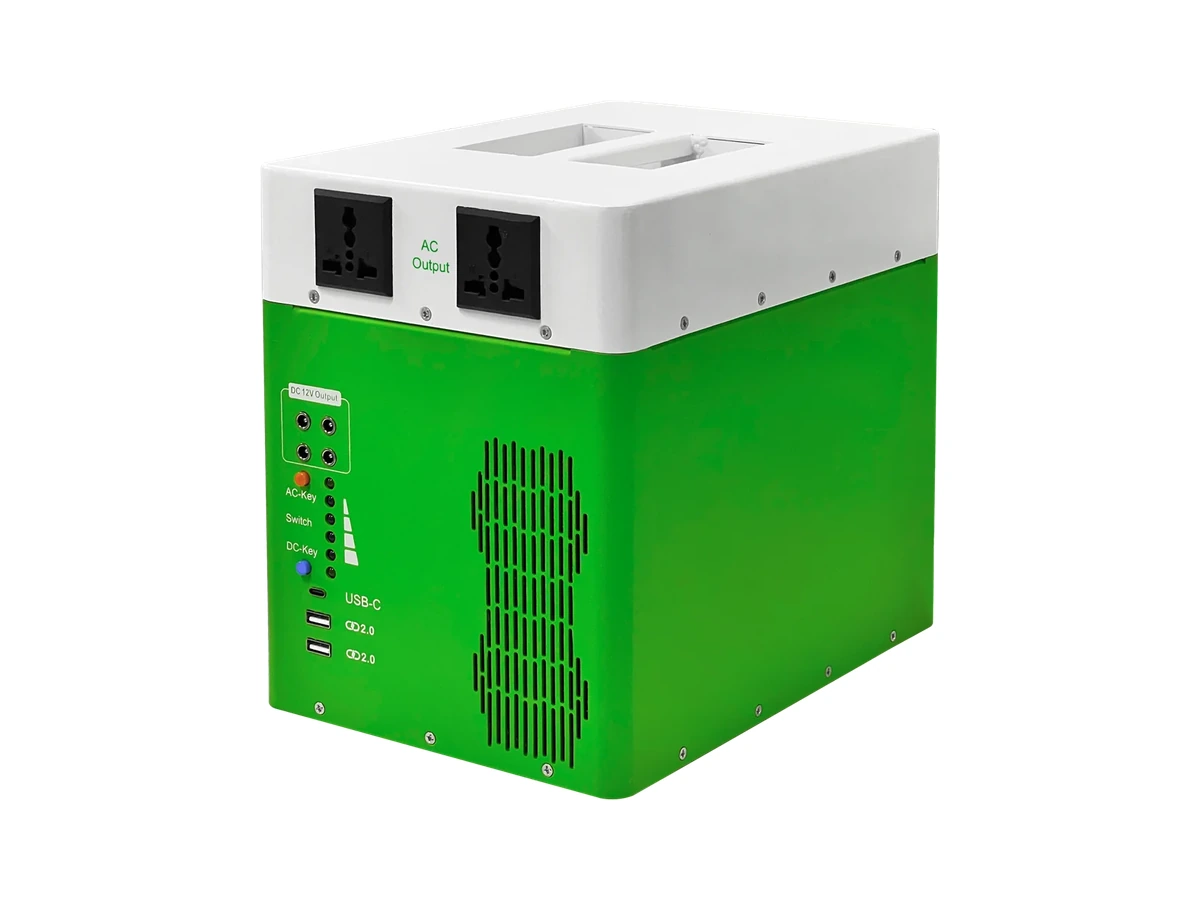

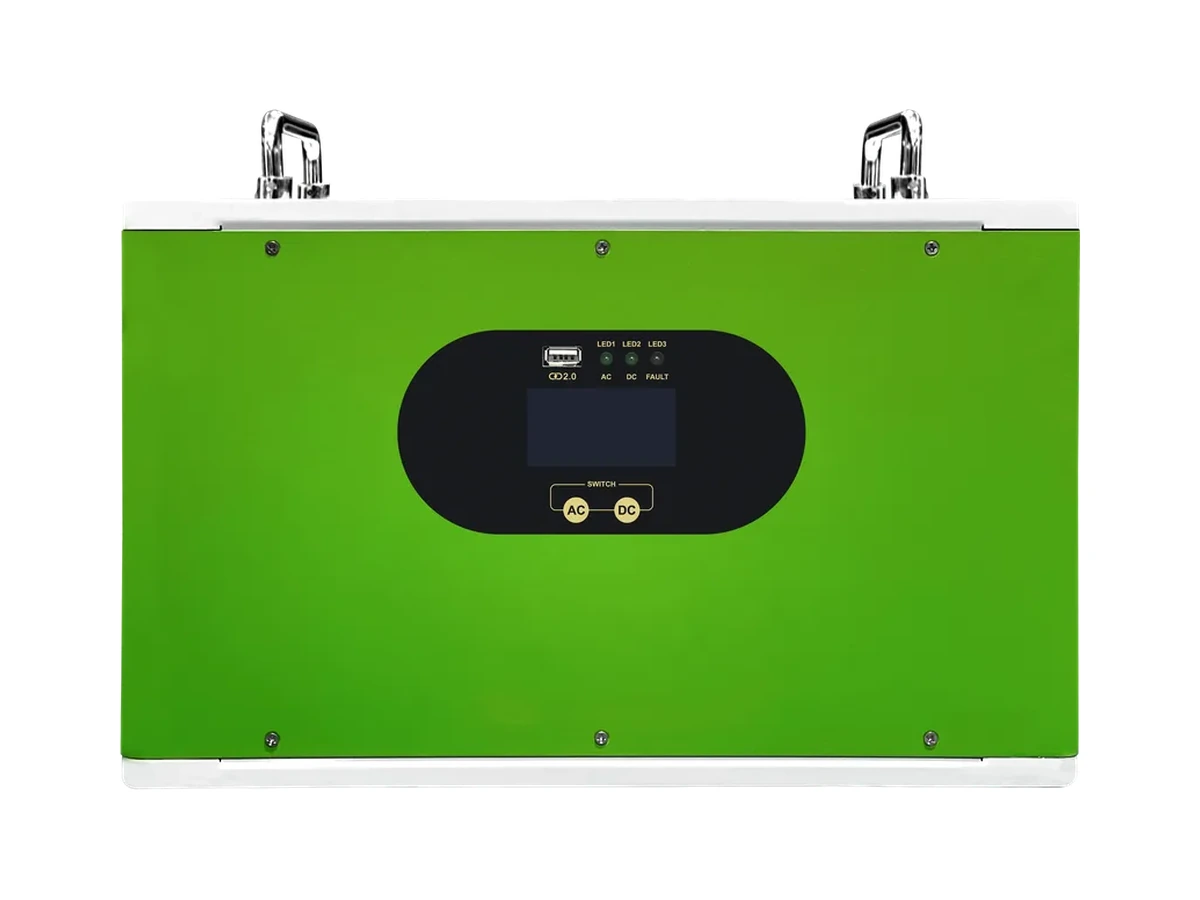

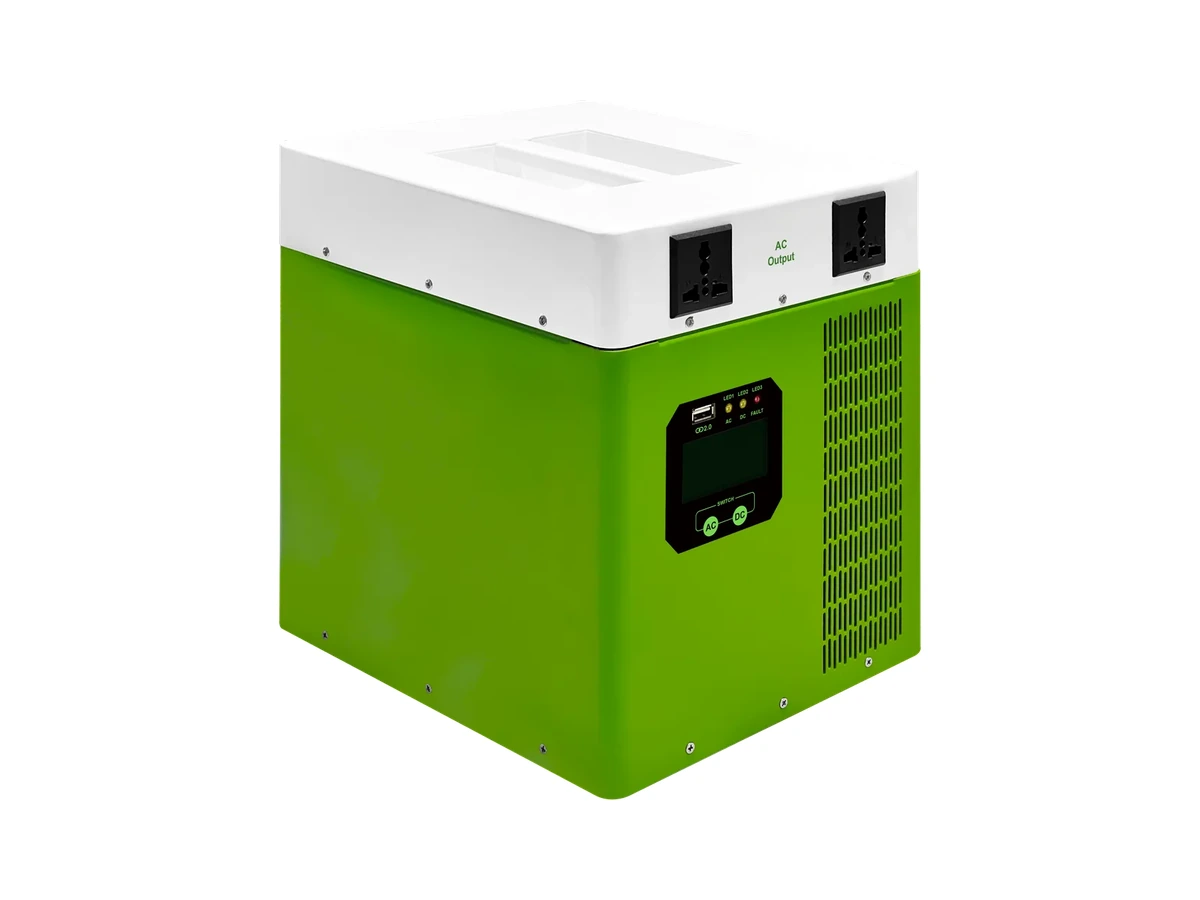

A Series starts at 800Wh with 300W or 500W output (A300C, A500C) and continues at 1000Wh with 500W (A500S). For 1000W output choose A1000C at 1600Wh or A1000S at 2000Wh; A1500S pairs 1500W with 3000Wh and A2000S pairs 2000W with 4000Wh. Add the running wattage of the devices you will power at the same time, and keep reserve for appliances that draw starting current above their rated wattage.

Solar input differs by model

PV input is 250W at 12–60V on A300C and A300S, 300W at 12–60V on A500C and A500S, 550W at 12–60V on A1000C and A1000S, and 1200W at 18–110V on A1500S and A2000S. Check the open-circuit voltage of your panel array against the listed range before ordering.

Interfaces and footprint

A300C, A500C and A1000C list a PD 20W USB-C port alongside the USB-A port; A500S, A1000S, A1500S and A2000S list USB-A only. Every model is portable in a sprayed metal enclosure, from 300 × 220 × 150 mm at A300C and A300S up to 380 × 280 × 230 mm at A1500S and A2000S.
