A SERIESLiFePO4lite EU A1000C product view

MODEL: lite EU A1000C  ·  Series: A Series Mini ESS

lite EU A1000C

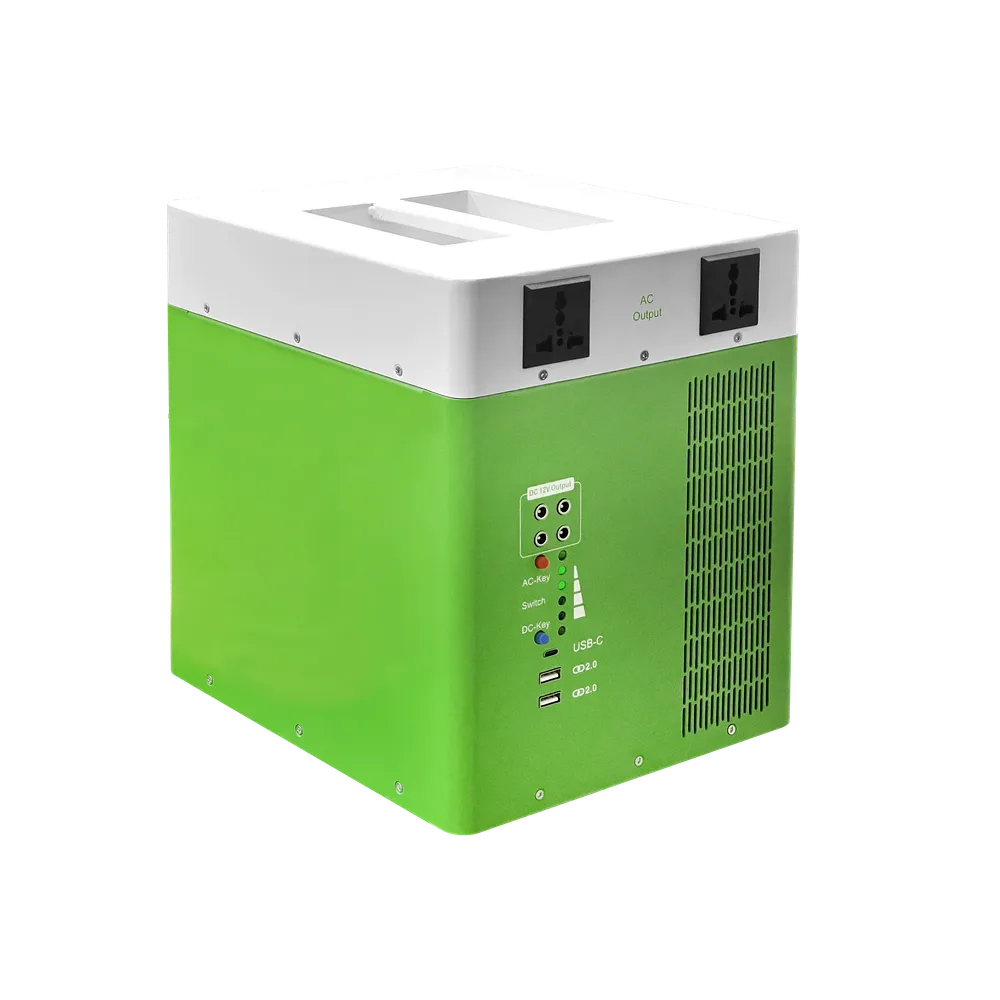

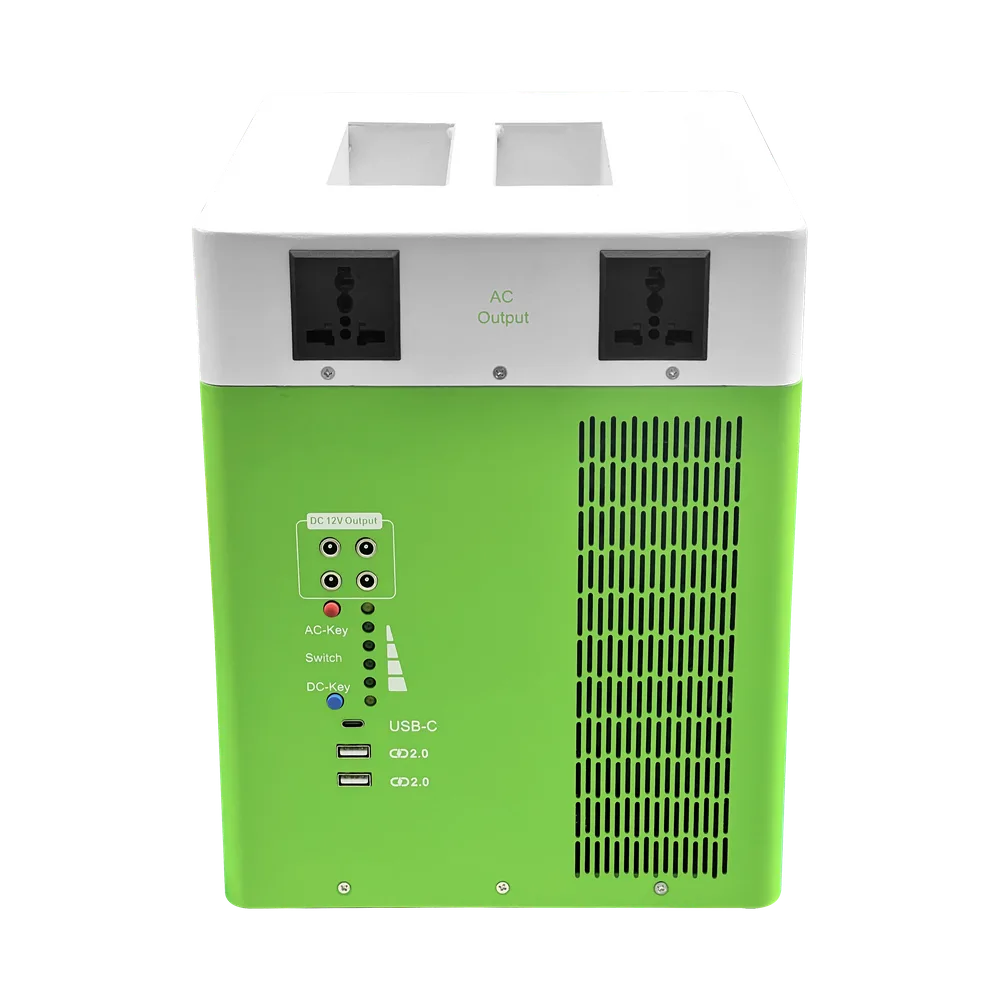

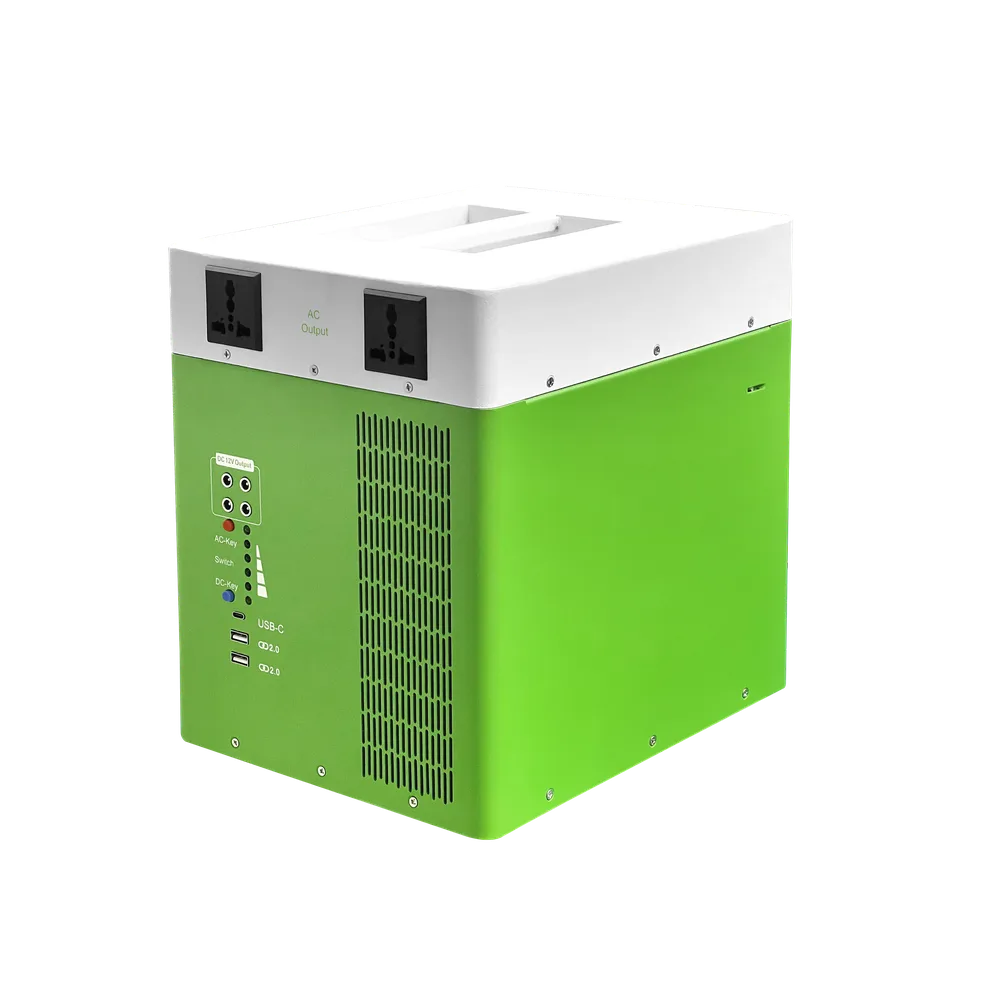

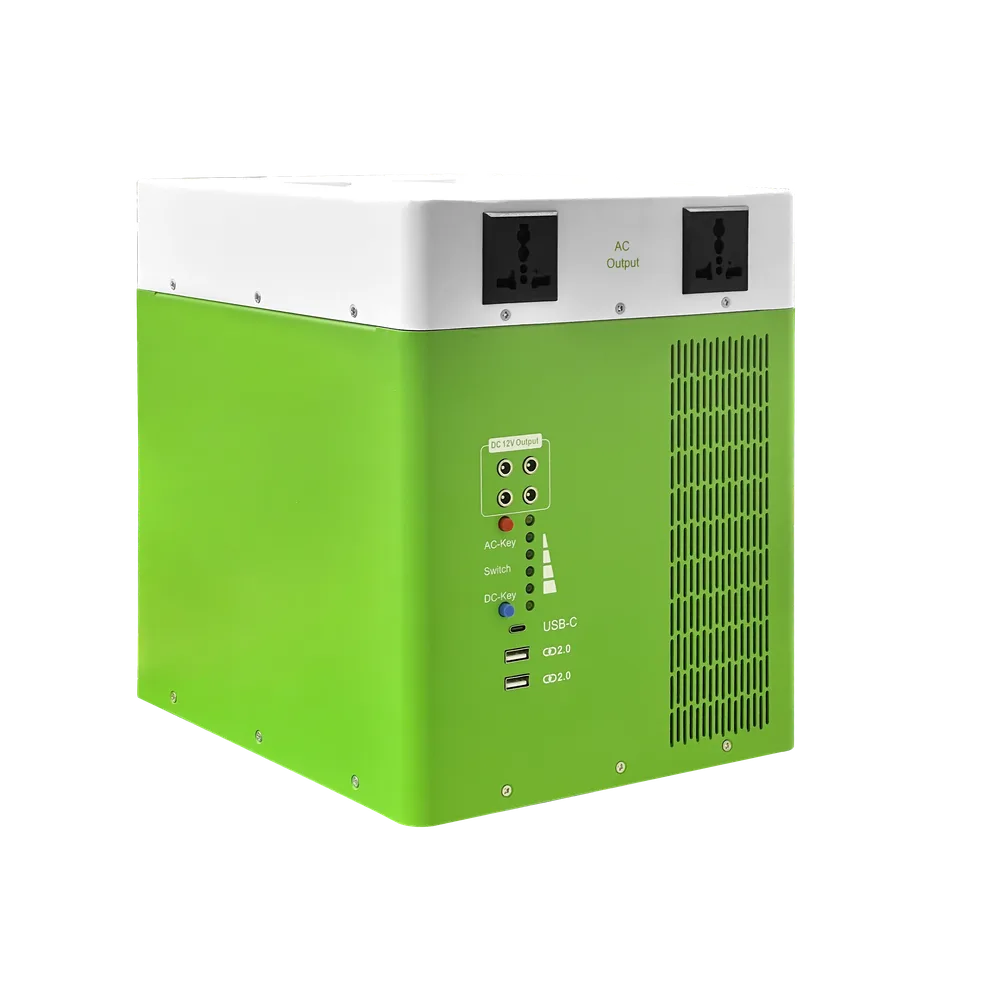

The lite EU A1000C is an integrated Mini ESS for portable home backup. Capacity is 1600Wh; rated AC output is 1000W pure sine wave at 220V and 50HZ/60HZ. Charging inputs are PV 12-60V, maximum 550W; AC 90-280V, maximum 1000W. Interfaces: USB-A: 2.0 Charging port; USB-C: PD 20W Fast charge. Use it with appliances and digital devices whose combined demand stays within 1000W.

CAPACITY1600Wh
RATED OUTPUT1000W
PV MAX INPUT550W
CELL CHEMISTRYLiFePO4

SOURCING TERMS

Direct manufacturer
20-ft containerMOQ PER MODEL
250,000 unitsANNUAL CAPACITY
20,000 unitsMONTHLY OUTPUT

Sampling and production lead times are confirmed per enquiry.

Confirm model MOQCompare modelsProduct documentationlite EU A1000C Product ManualEnglish PDF · Opens in a new tabView or download
✓ LiFePO4 cells✓ Pure sine wave output✓ Solar + AC charging

Technical specifications

A1000C specifications

Technical parameters for lite EU A1000C
ParameterSpecification
AC output
Rated output1000W
WaveformPure Sine Wave
AC voltage220V
AC frequency50HZ/60HZ
Inverter efficiency>86%
AC socket typeGlobal Specification
USB-A2.0 Charging port
USB-CPD 20W Fast charge
Battery
Rated capacity1600Wh
ChemistryLiFePO4
Cycle life≥6000 cycles
Charging & input
PV input voltage12-60V
PV max input550W
AC input range90-280V
AC max charge1000W
Mains charging efficiency>95%
Charging modesAC / PV Charger
UPS bypass<50ms
Physical
EnclosureMetal spraying
Form factorPortable
Dimensions280*230*285mm
Net weight18.5kg
Gross weight20.1kg
Display6 LEDs
Environment
Charge temperature-10~40 ℃
Storage temperature-15~60℃
Humidity20~95%RH
Operating noise<50dB
Storage humidity5-95%RH
Commercial
MOQone 20-foot container per model
Warranty18 months; see order terms
Packaging & logistics
Carton dimensions330*280*350

B2B enquiry

Request a A1000C quotation.

Talk to YDPOWER →

More A Series Mini ESS models

A300C 300W Mini ESS →A300S 300W Mini ESS →A500C 500W Mini ESS →View A Series Mini ESS →
