US Mini ESS · 60Hz

Home battery backup for 100–120V appliances

Designed for everyday household use, with the flexibility to take power outdoors. Choose 300W, 500W or 1000W pure sine wave output, with LiFePO4 storage and solar or AC charging.

Compare US models ↓
lite US A300C black portable home energy storage system

Three models

Choose output power and stored energy separately

Model selection

Match the battery to your daily loads

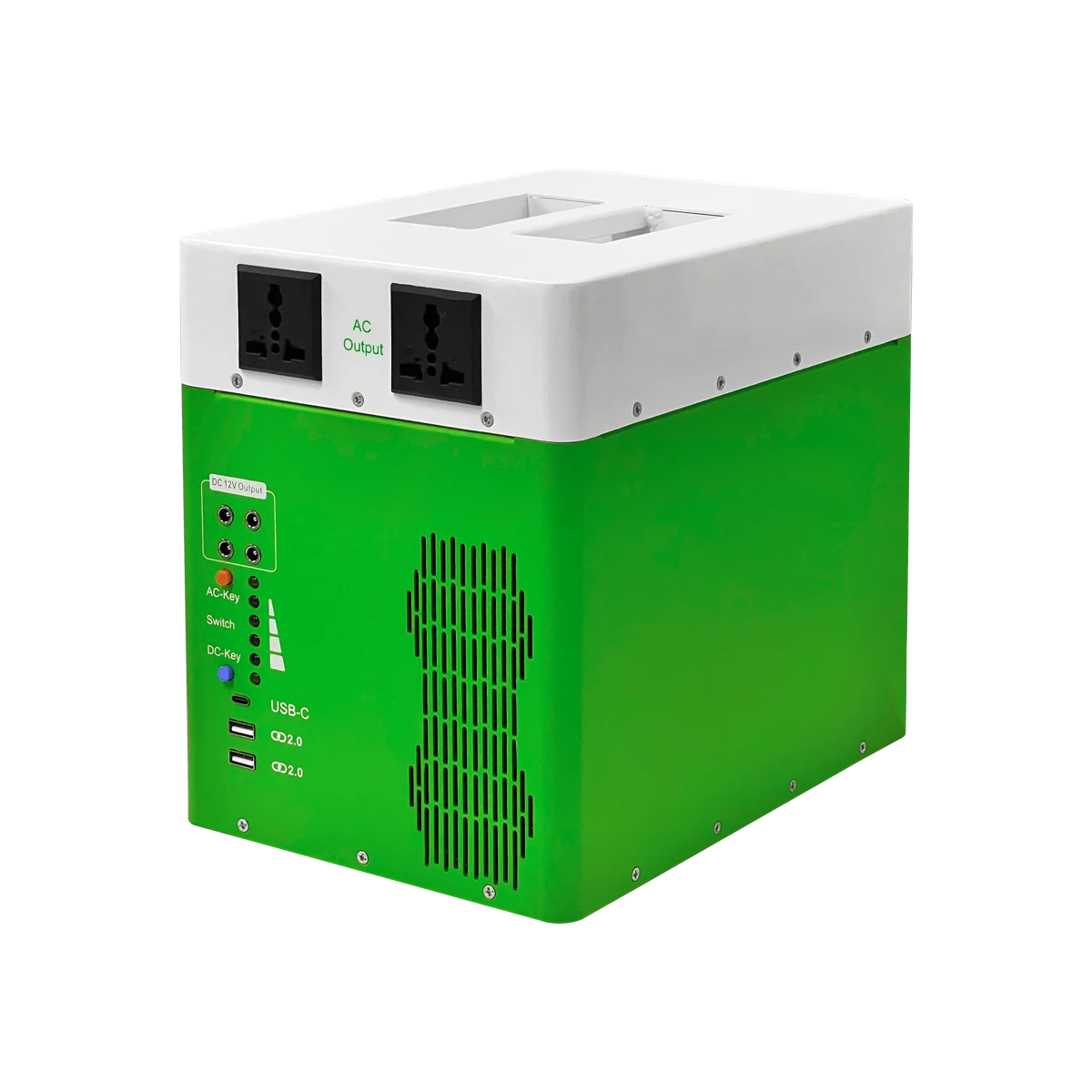

300W or 500W with 800Wh storage

A300C and A500C store the same nominal energy. The A500C supports a higher combined appliance load; higher output power alone does not mean longer runtime.

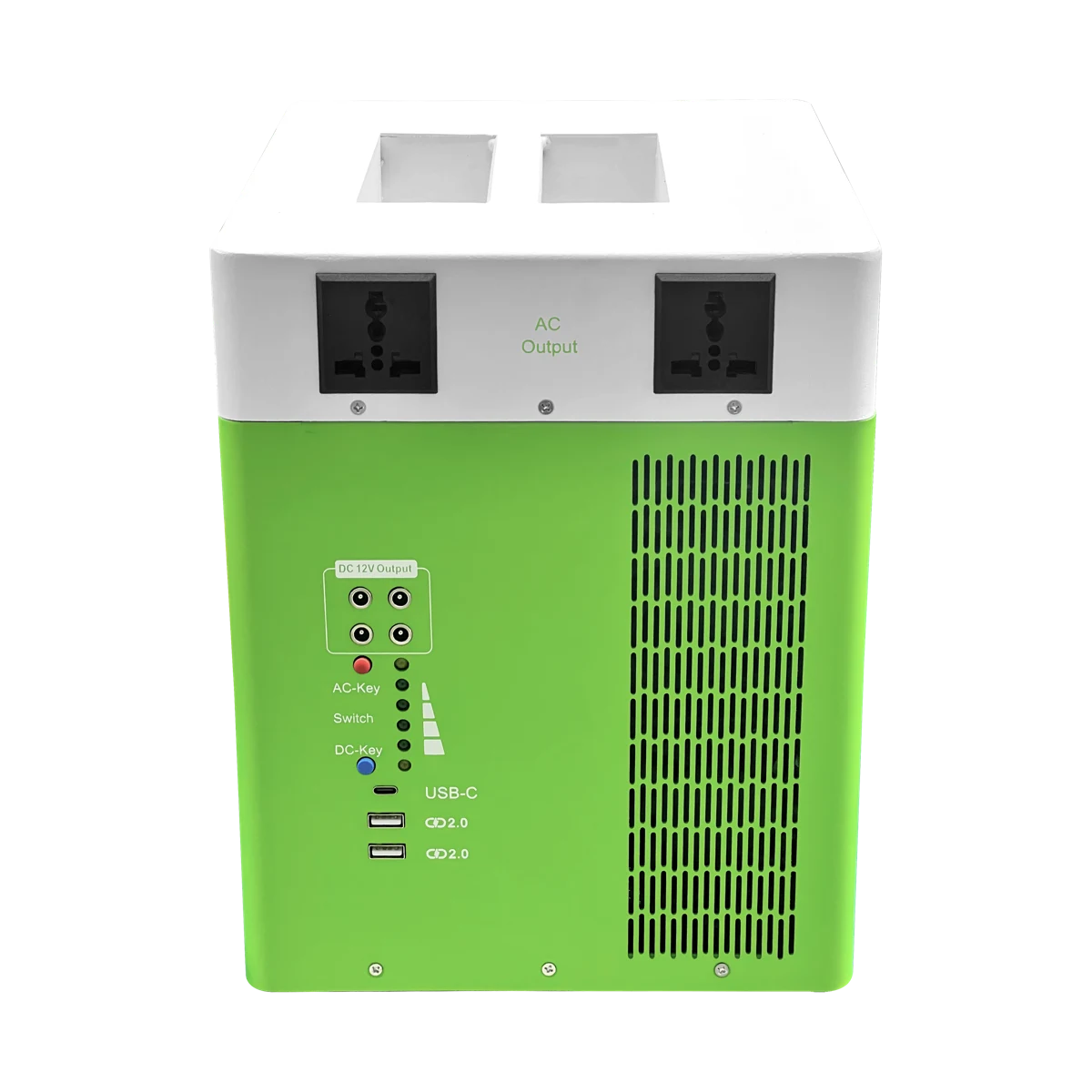

1000W with 1600Wh storage

A1000C combines the highest output and capacity in this group. Check appliance starting demand as well as running power when selecting a model.

AC and solar charging

All three models accept 85–135V, 60Hz AC input and 12–60V PV input. Solar input limits are 250W, 300W and 550W respectively. Follow the model manual for connection and operating conditions.

Plan a US Mini ESS order

Send your model selection, quantities, destination and required socket configuration. We can discuss private-label packaging and provide a quotation for your order.

Dimensions and metal enclosure

All three US models use a powder-coated metal enclosure with LiFePO4 chemistry and EPS transfer under 50ms: US-A300C measures 250 × 230 × 175 mm, US-A500C measures 275 × 190 × 246 mm and US-A1000C measures 280 × 230 × 285 mm.

USB-A and PD 20W USB-C ports

Every unit includes a PD 20W USB-C port. US-A300C pairs it with 5V/1A and 5V/2A USB-A outputs, while US-A500C and US-A1000C feature USB 3.0 at 5V/3A alongside 100–120V, 60Hz pure sine wave AC outlets.

MOQ, samples and lead time

Standard MOQ is one 20-foot container per model with a 4-week production lead time (3 weeks for OEM samples). Single-unit samples are available, with the sample fee refunded once your first order reaches a 40-foot container.
