US SERIESLiFePO4
MODEL: lite US A1000C · Series: US Mini ESS

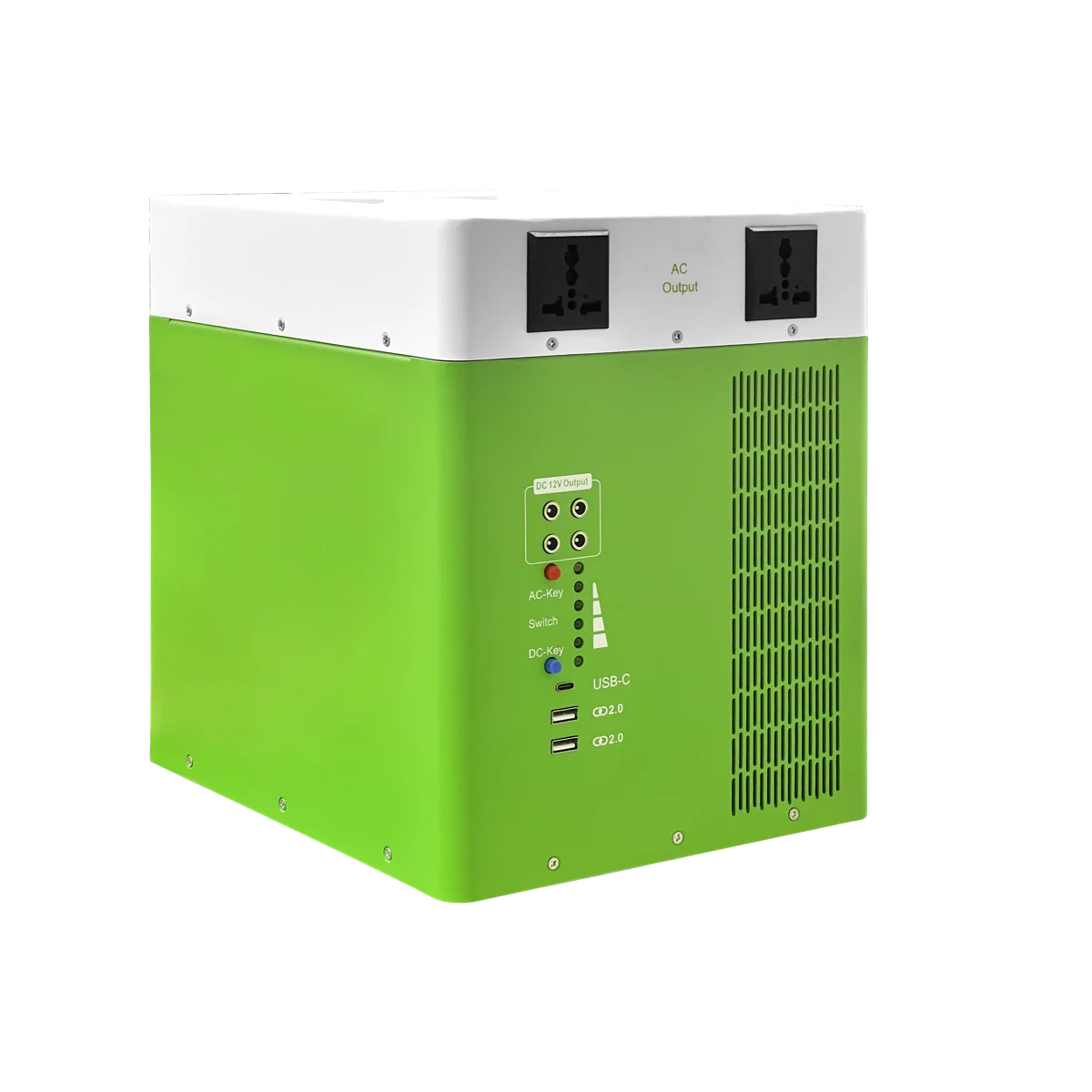

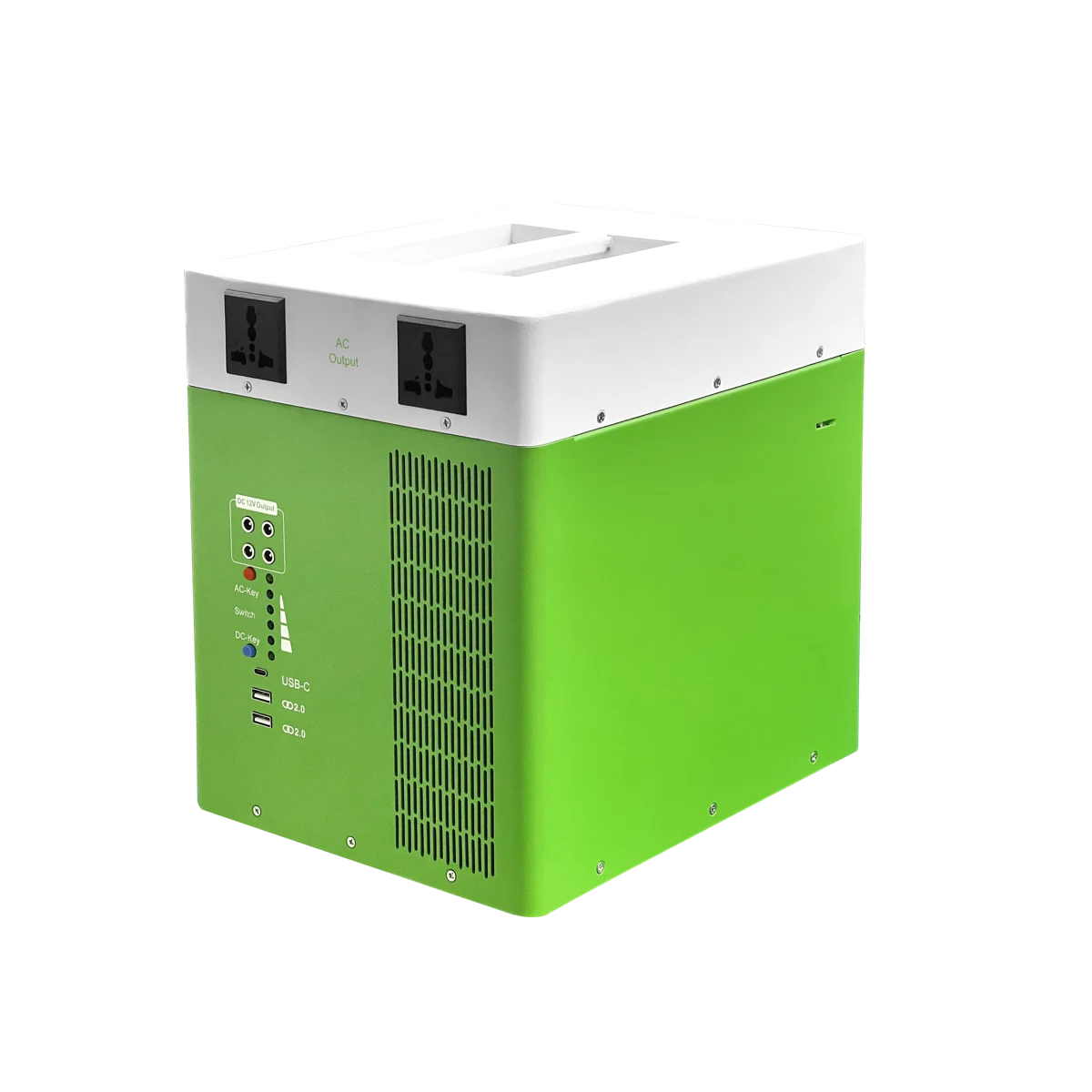

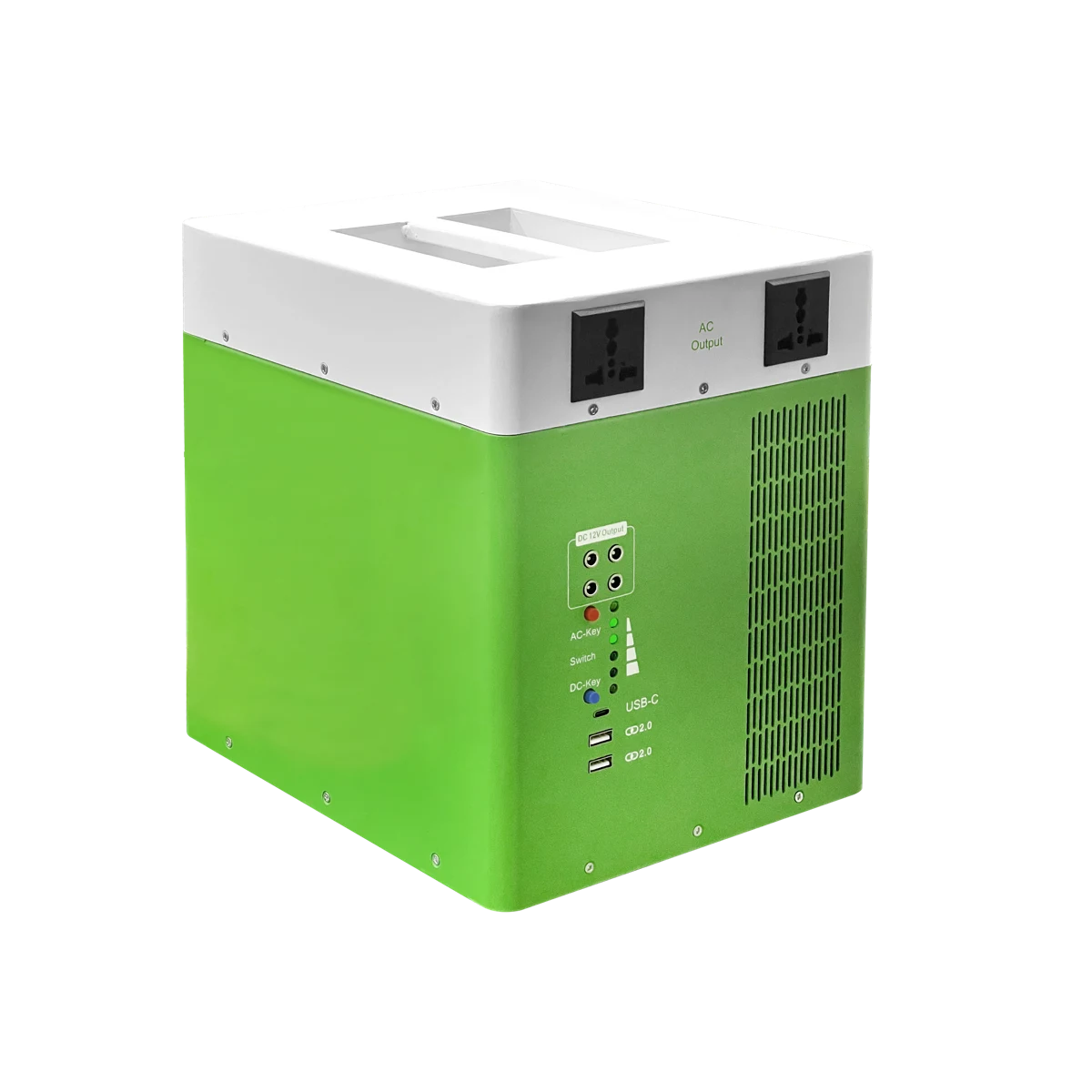

lite US A1000C
Designed for household use and portable outdoor power, the lite US A1000C combines 1600Wh LiFePO4 storage with 1000W pure sine wave output at 100–120V, 60Hz. Charge from an 85–135V AC supply or 12–60V solar panels with up to 550W PV input.
CAPACITY1600Wh
RATED OUTPUT1000W
PV MAX INPUT550W
CELL CHEMISTRYLiFePO4
SOURCING TERMS
Direct manufacturer20-ft containerMOQ PER MODEL
250,000 unitsANNUAL CAPACITY
20,000 unitsMONTHLY OUTPUT
Sampling and production lead times are confirmed per enquiry.
Confirm model MOQCompare modelsProduct documentationlite US A1000C Product ManualEnglish PDF · Opens in a new tabView or download
✓ LiFePO4 cells✓ Pure sine wave output✓ Solar + AC charging
Technical specifications
US-A1000C specifications
| Parameter | Specification |
|---|---|
| AC output | |
| Rated output | 1000W |
| Waveform | Pure sine wave |
| AC voltage | 100–120V |
| AC frequency | 60Hz |
| USB-A | USB 3.0, 5V / 3A |
| USB-C | PD 20W |
| Battery | |
| Rated capacity | 1600Wh |
| Chemistry | LiFePO4 |
| Cycle life | ≥6000 cycles |
| Charging & input | |
| PV input voltage | 12–60V |
| PV max input | 550W |
| AC input range | 85–135V (60Hz) |
| AC max charge | 1000W |
| Charging modes | AC / PV |
| UPS bypass | EPS transfer <50ms |
| Physical | |
| Enclosure | Powder-coated metal |
| Form factor | Portable |
| Dimensions | 280 × 230 × 285mm |
| Net weight | 18.5kg |
| Gross weight | 20.1kg |
