B Series Mini ESSB SERIES

PRODUCT FAMILY

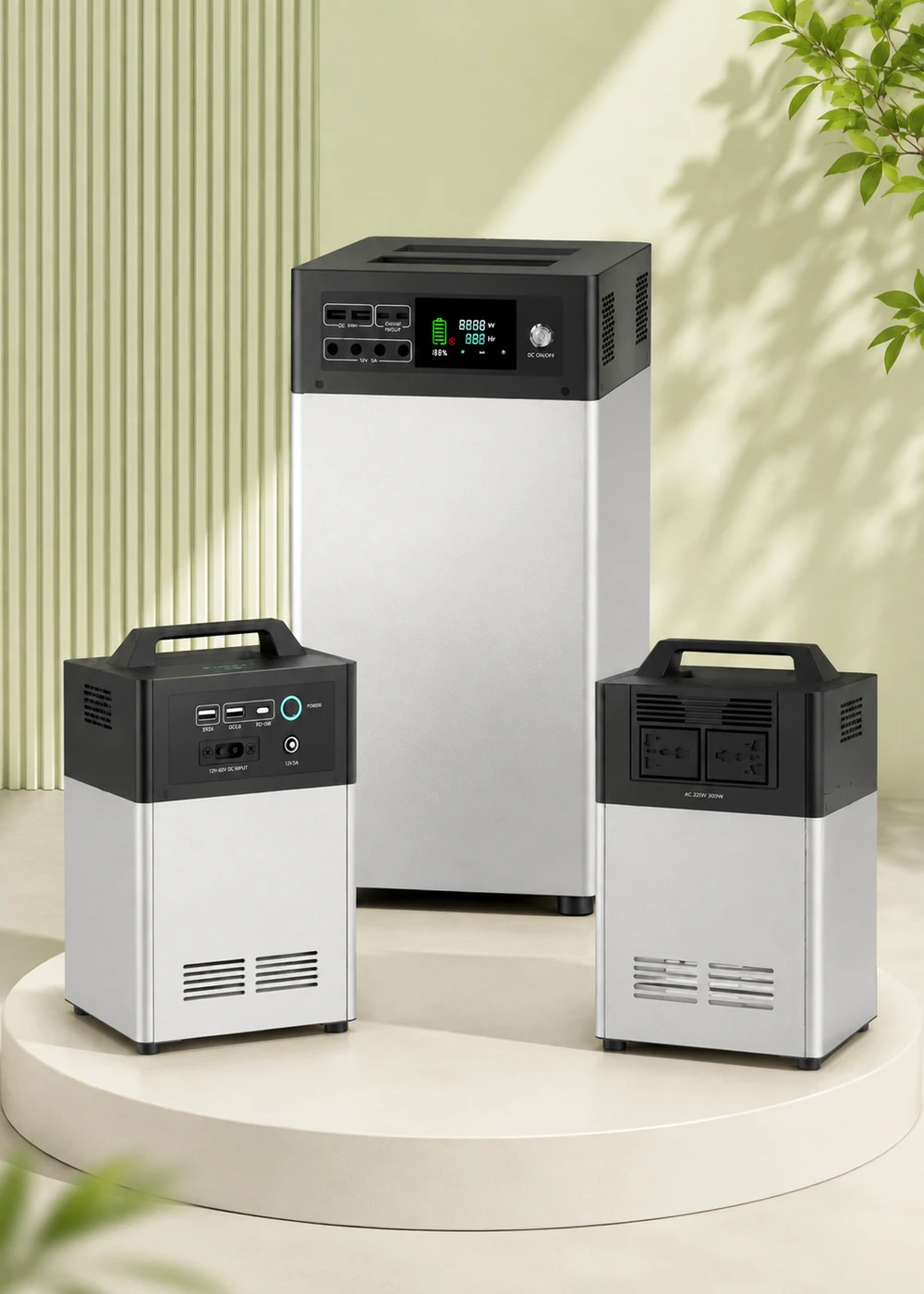

Compact B Series Mini ESS

B Series models provide 300W or 700W rated pure sine wave output and 800–2000Wh listed capacity. Compare DC7909 or XT90/PV charging, interfaces and load limits for each SKU.

300–700WOutput range
800–2000WhCapacity range
4Models in this family

Selection notes

How to choose within B Series Mini ESS

Two output classes, four SKUs

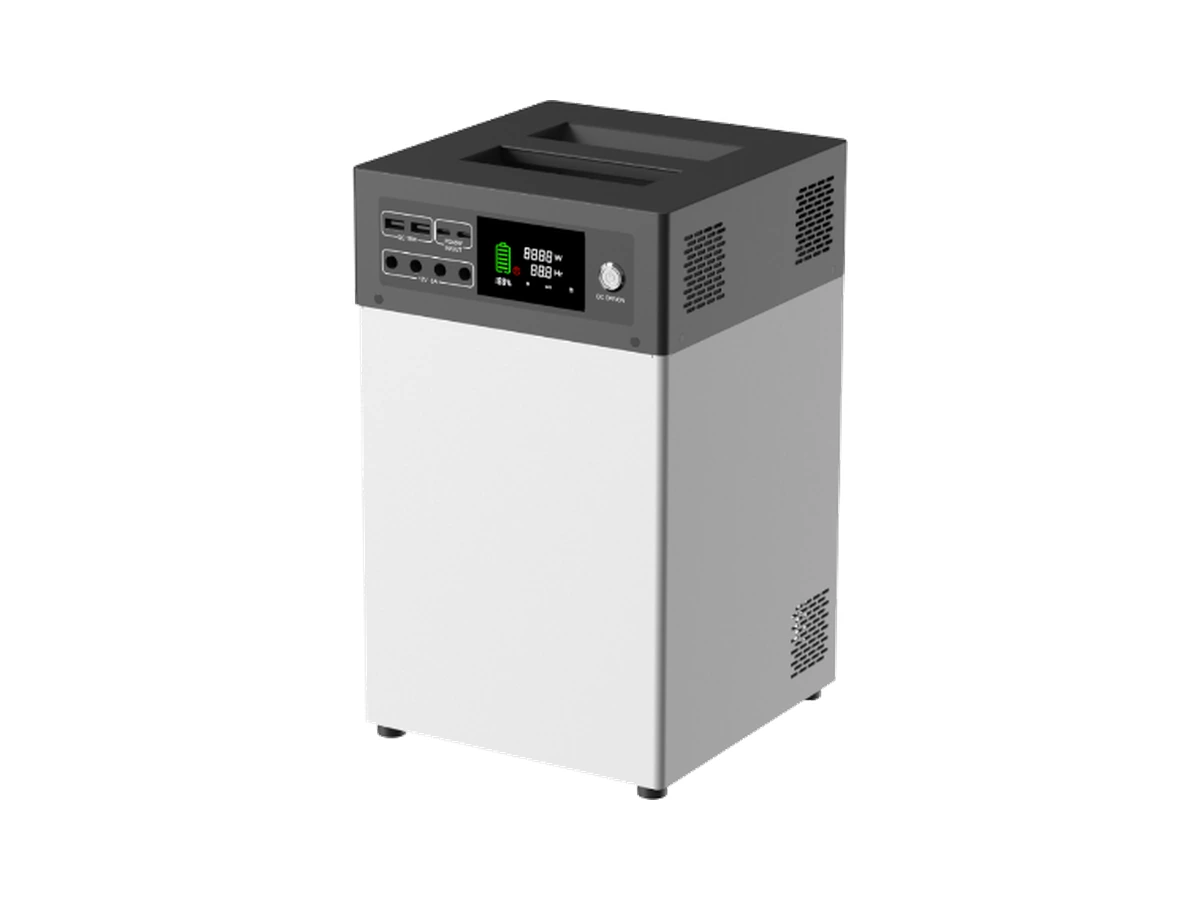

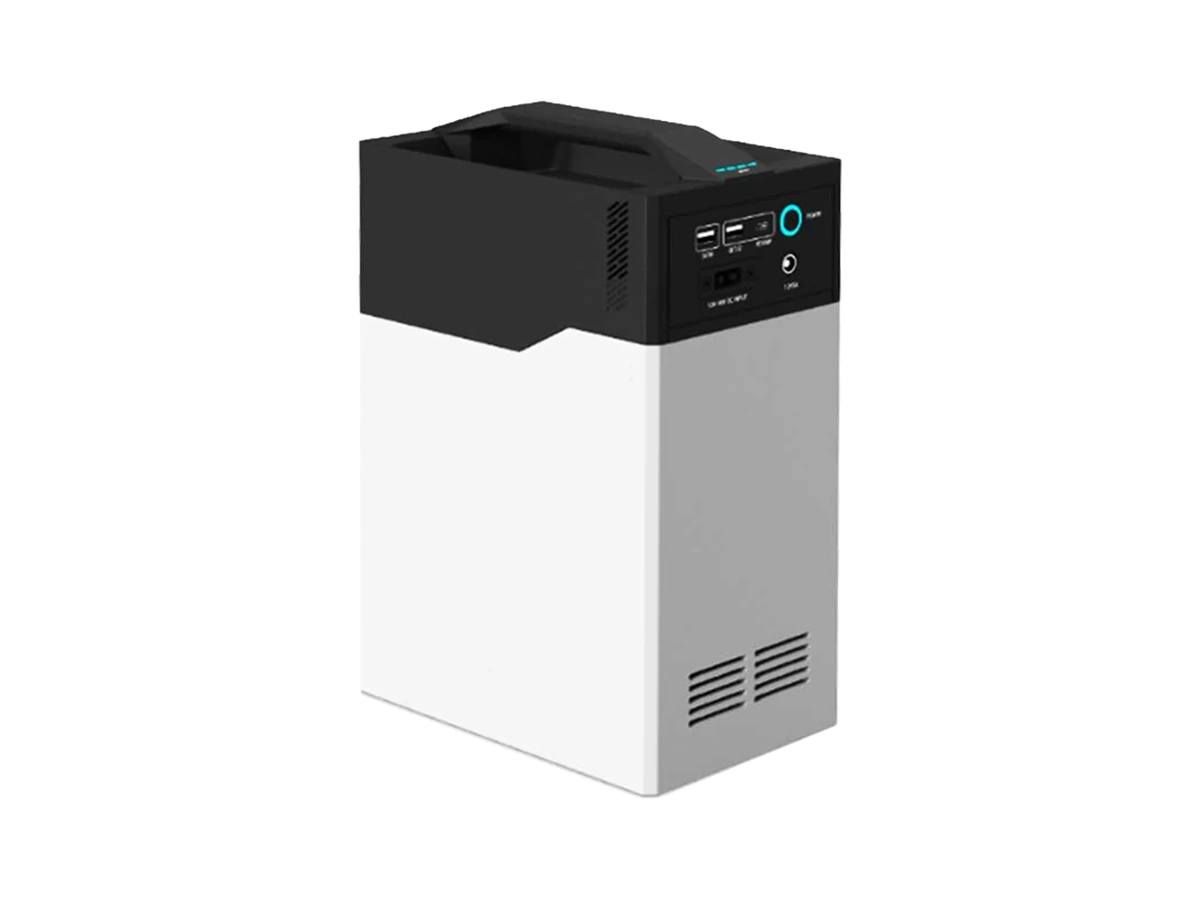

B300C and B300S list 300W pure sine wave output with 200W PV input at 12–60V, at 800Wh and 1000Wh capacity. B1000C and B1000S raise rated output to 700W with 400W PV input at 12–60V, at 1600Wh and 2000Wh.

Multi-interface charging ports

All four models list a QC3.0 USB-A port supporting QC, AFC and FCP at 5V3A, 9V2A or 12V1.5A. B300C and B300S pair it with a PD18W USB-C port; B1000C and B1000S with PD45W USB-C.

Enclosure and dimensions

B300C and B300S use a plastic enclosure at 219 × 142 × 310 mm. B1000C and B1000S use a metal enclosure at 225 × 220 × 366 mm. Confirm the shelf or floor space at the point of sale before specifying quantities.
