W Series Wall-Mounted Mini ESSW SERIES

PRODUCT FAMILY

Wall-mounted W Series Mini ESS

W Series models provide 1000–2000W rated pure sine wave output and 2000–4000Wh listed capacity in portable or wall-mounted forms. Compare each model's PV input, AC input and placement requirements.

1000–2000WOutput range
2000–4000WhCapacity range
4Models in this family

Selection notes

How to choose within W Series Wall-Mounted Mini ESS

Wall-mounted or free-standing

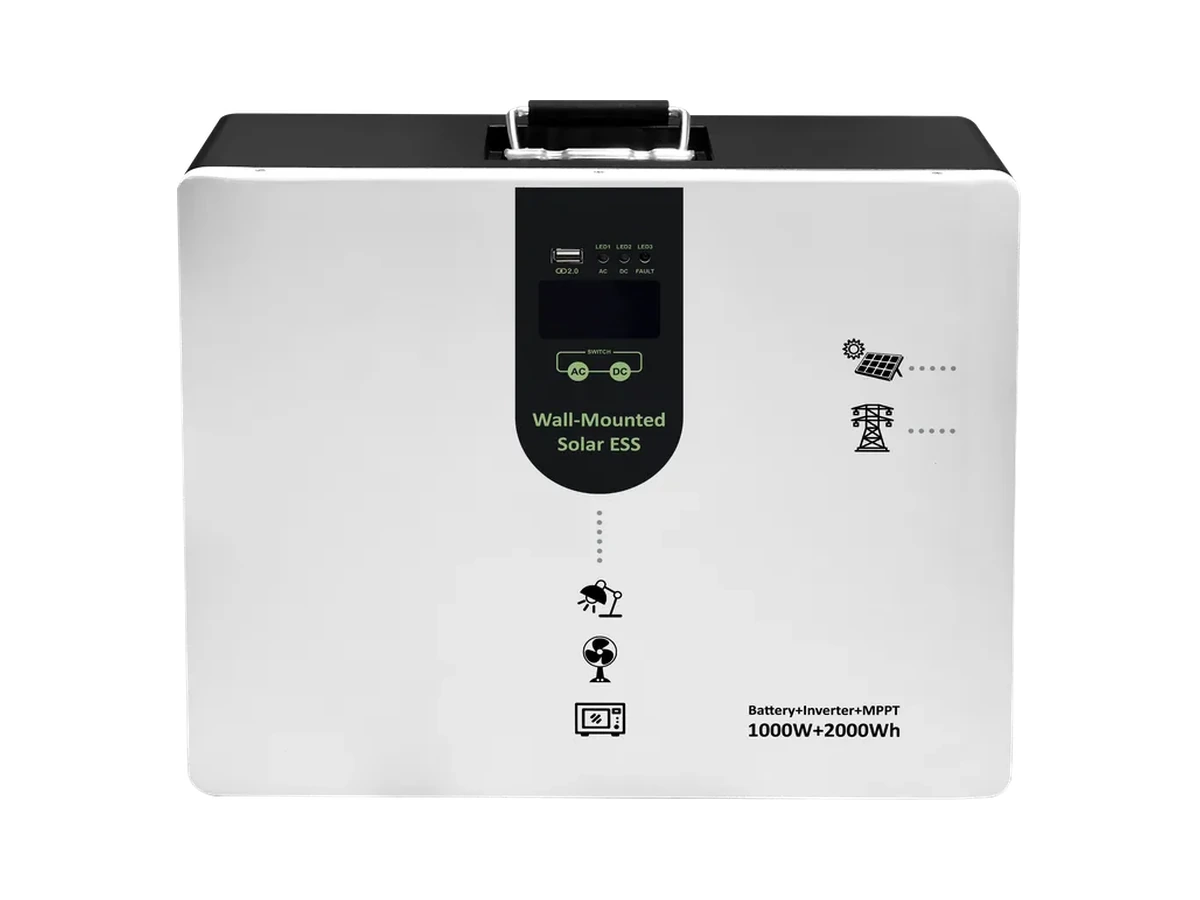

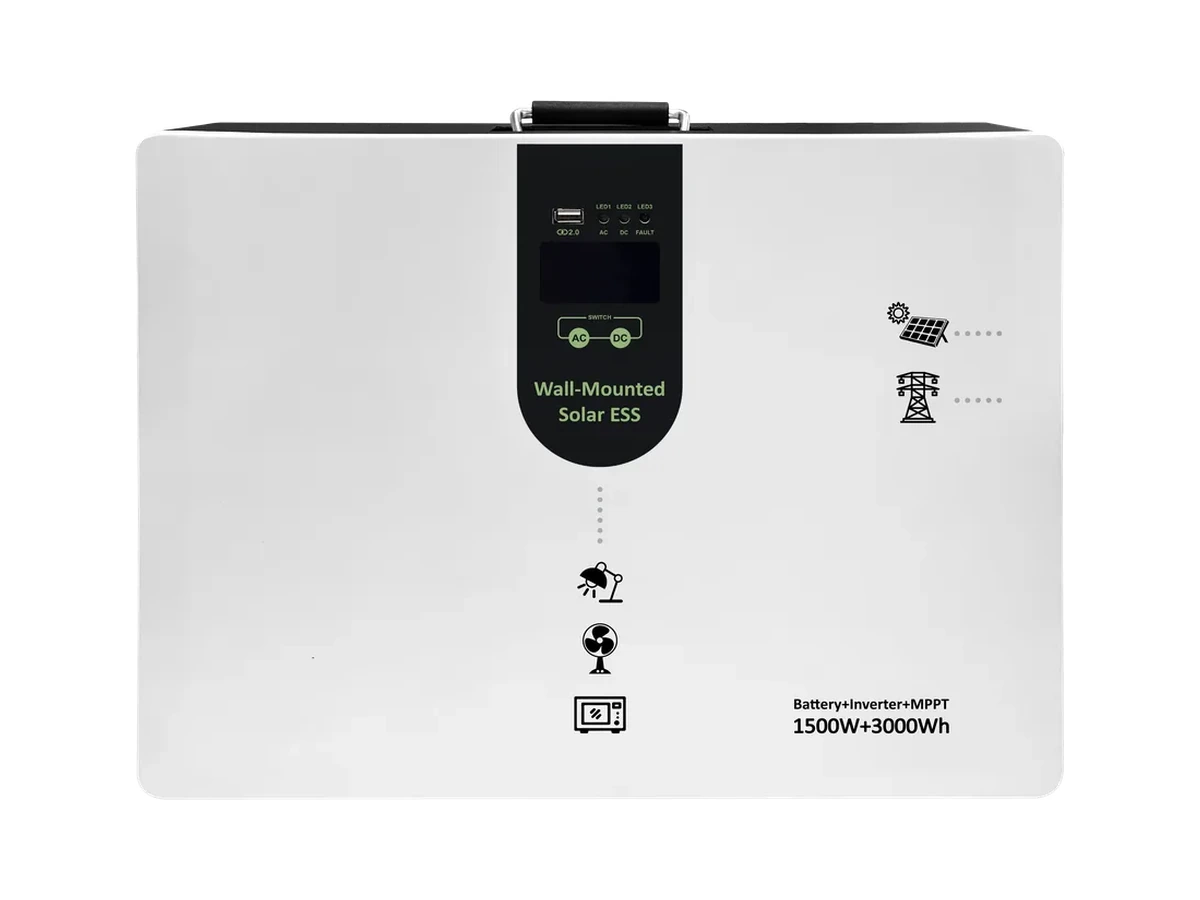

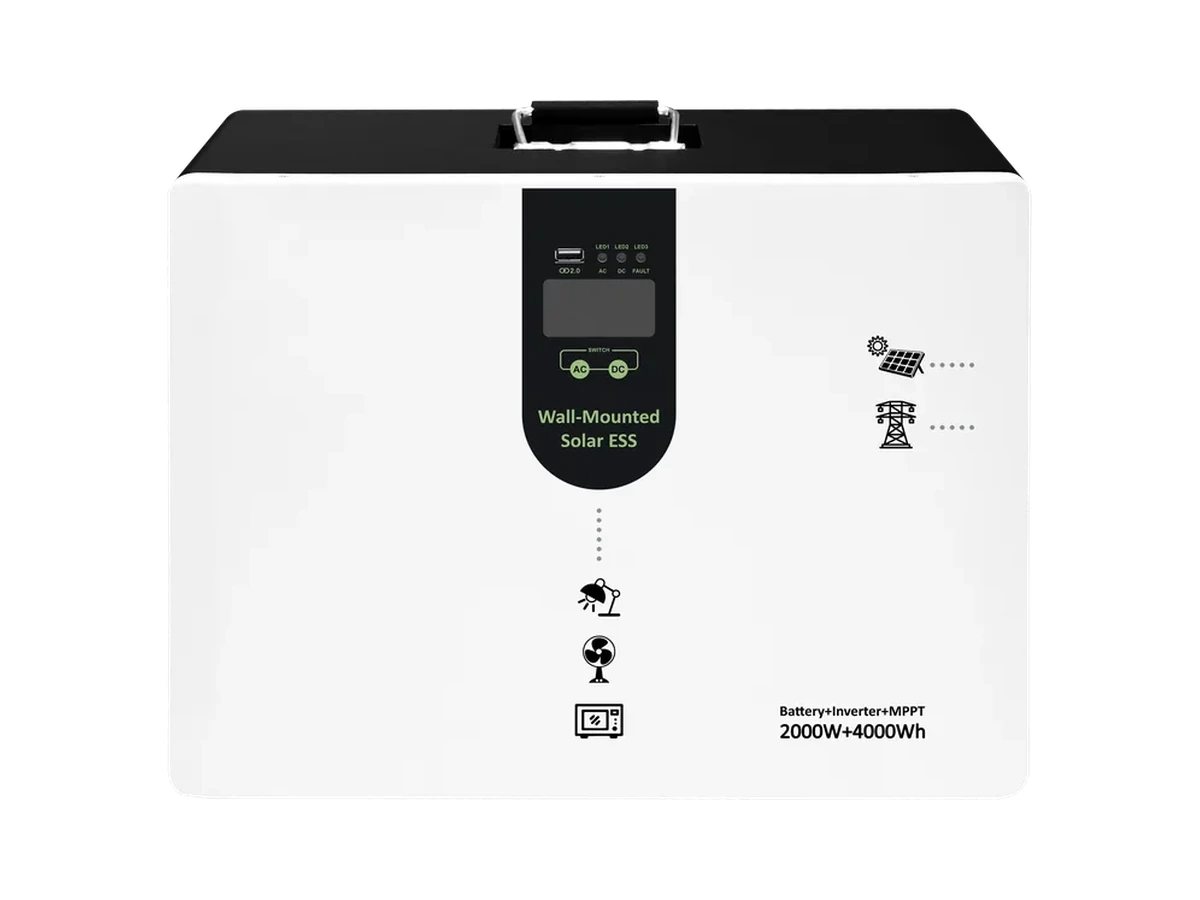

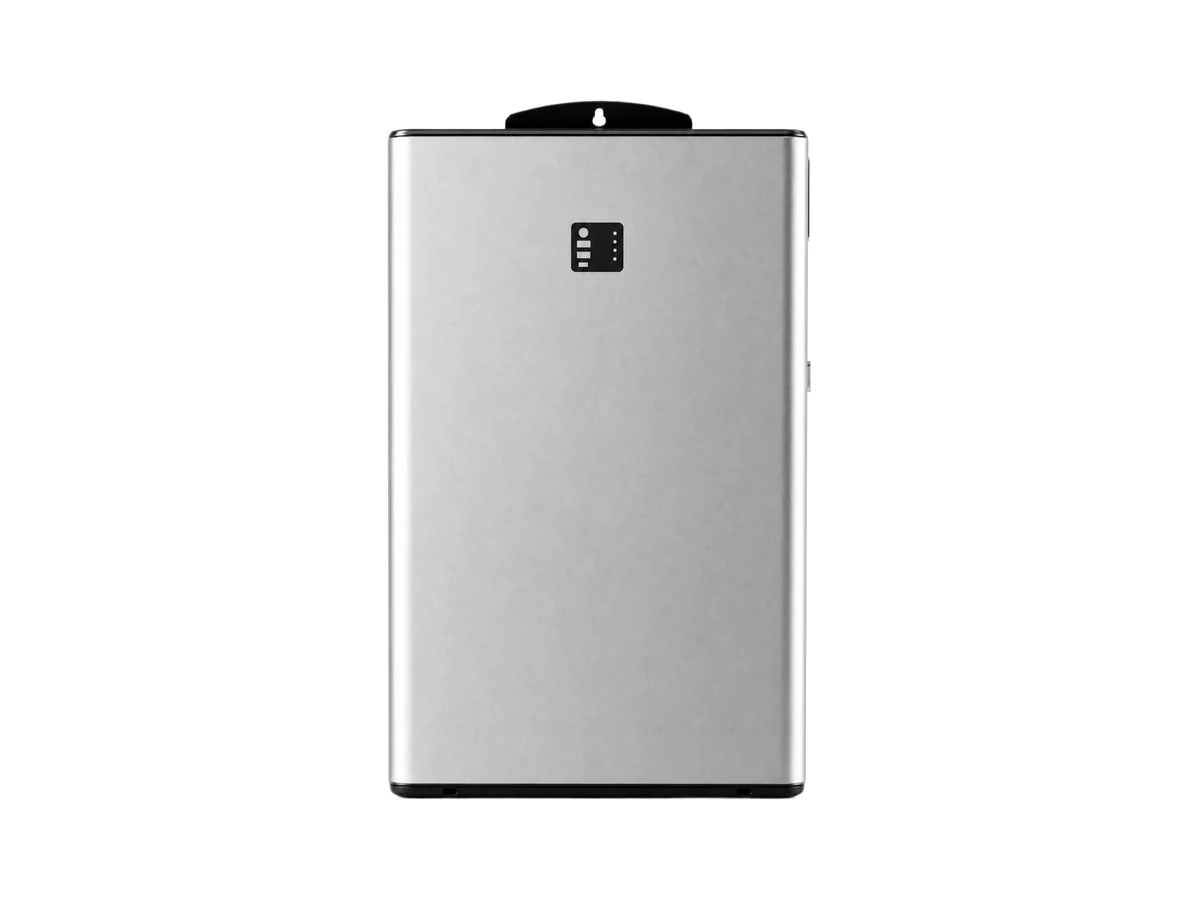

W1000R is 92 mm deep (420 × 400 × 92 mm) in a flush format intended for wall installation. W1000S, W1500S and W2000S are 335 mm deep with footprints of 410 × 146.5 mm, 450 × 196.5 mm and 450 × 226.5 mm, and can be used free-standing or mounted. Confirm the wall can carry the unit before installation.

Output and capacity by model

W1000R and W1000S both list 1000W output at 2000Wh. W1500S lists 1500W at 3000Wh and W2000S lists 2000W at 4000Wh. Match the model to the combined load of the circuits that will be backed up.

Solar input and USB output

PV input is 600W at 12–60V DC on W1000R, 550W at 11–55V on W1000S, and 1200W at 18–120V on W1500S and W2000S. W1000R lists two 5V/2A USB ports at 10W maximum each; W1000S, W1500S and W2000S list a 5V/2A USB-A port.
