W SERIESLiFePO4
MODEL: lite EU W2000S · Series: W Series Wall-Mounted Mini ESS
lite EU W2000S

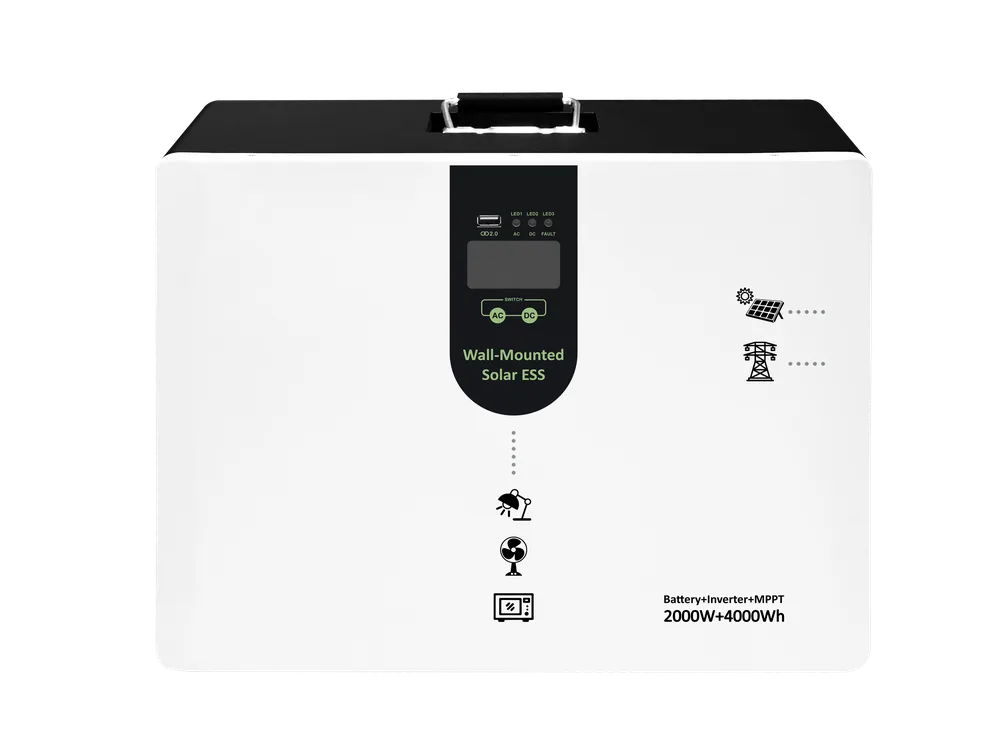

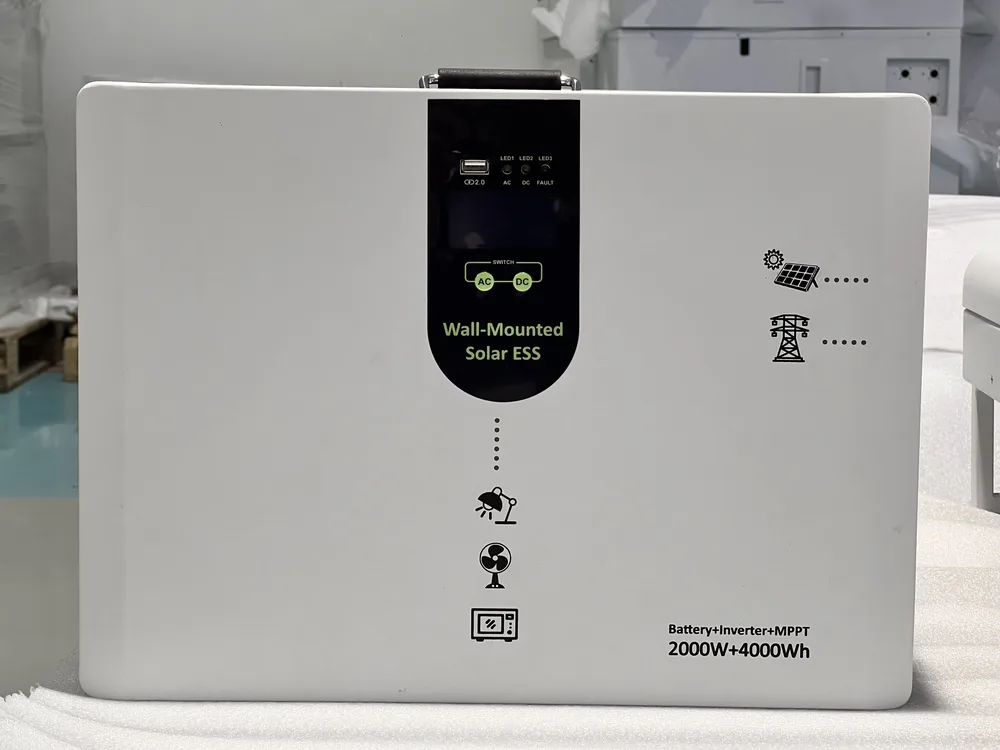

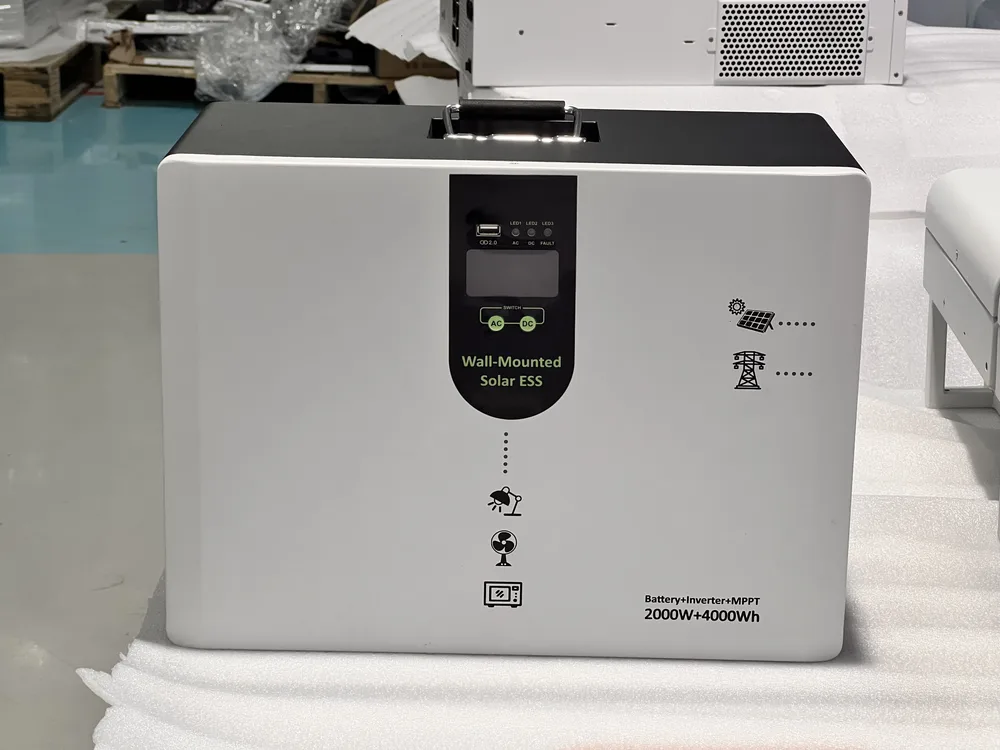

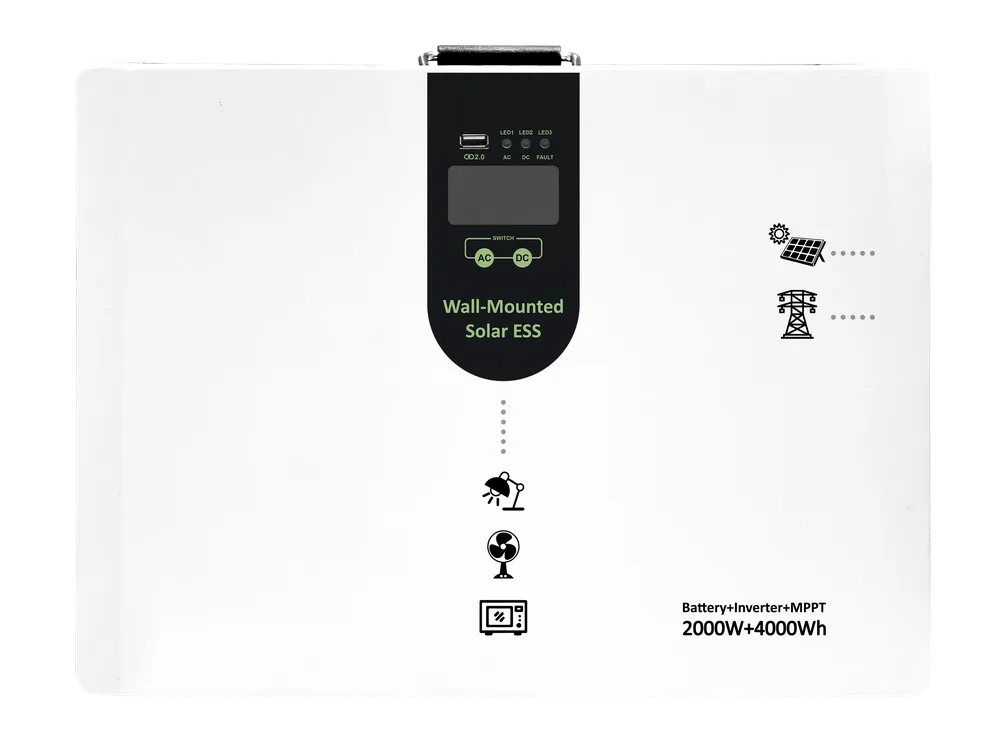

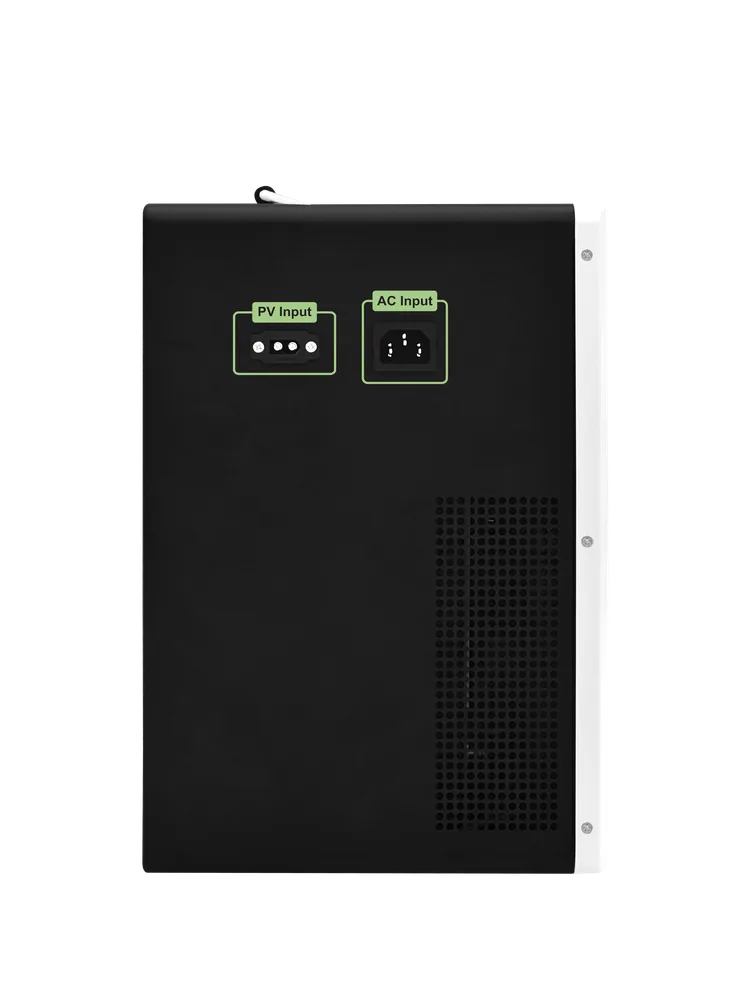

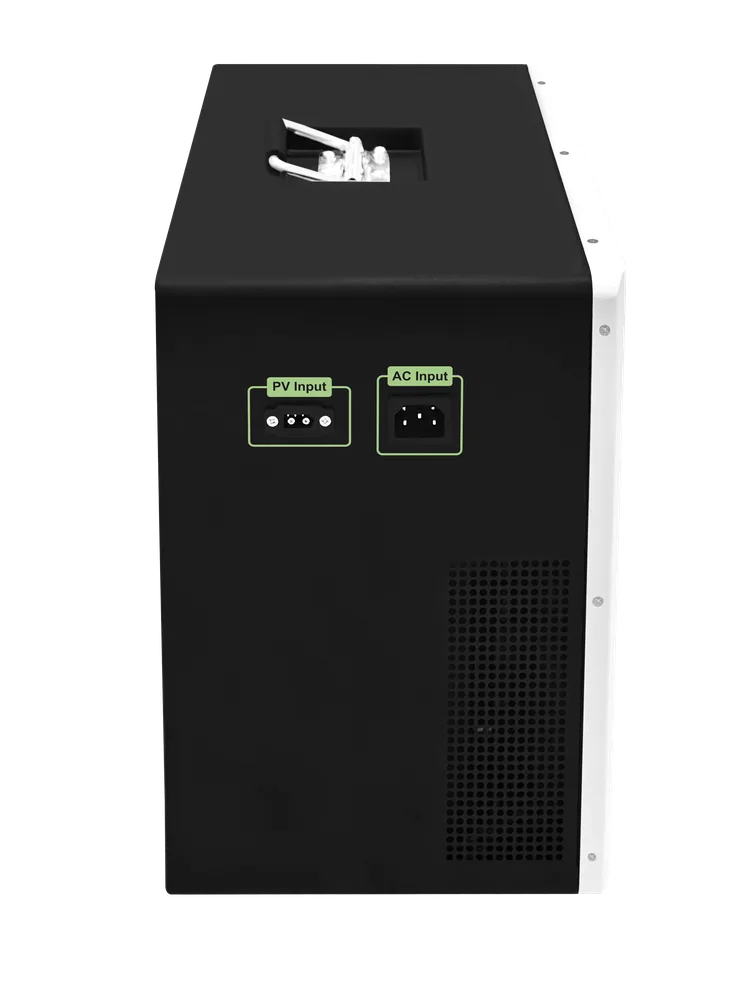

The lite EU W2000S is an integrated Mini ESS for portable or wall-mounted use. Capacity is 4000Wh; rated AC output is 2000W pure sine wave at 220V and 50HZ/60HZ. Charging inputs are PV 18-120V, maximum 1200W; AC 100-280V, maximum 2000W. Interfaces: USB-A: 5V 2A. Use it with appliances and digital devices whose combined demand stays within 2000W.
CAPACITY4000Wh
RATED OUTPUT2000W
PV MAX INPUT1200W
CELL CHEMISTRYLiFePO4
SOURCING TERMS
Direct manufacturer20-ft containerMOQ PER MODEL
250,000 unitsANNUAL CAPACITY
20,000 unitsMONTHLY OUTPUT
Sampling and production lead times are confirmed per enquiry.
Confirm model MOQCompare modelsProduct documentationlite EU W2000S Product ManualEnglish PDF · Opens in a new tabView or download
✓ LiFePO4 cells✓ Pure sine wave output✓ Solar + AC charging
Technical specifications
W2000S specifications
| Parameter | Specification |
|---|---|
| AC output | |
| Rated output | 2000W |
| Waveform | Pure Sine Wave |
| AC voltage | 220V |
| AC frequency | 50HZ/60HZ |
| Inverter efficiency | >86% |
| AC socket type | Global Specification |
| USB-A | 5V 2A |
| Battery | |
| Rated capacity | 4000Wh |
| Chemistry | LiFePO4 |
| Cycle life | ≥6000 cycles |
| Charging & input | |
| PV input voltage | 18-120V |
| PV max input | 1200W |
| AC input range | 100-280V |
| AC max charge | 2000W |
| Mains charging efficiency | >95% |
| Charging modes | AC / PV Charger |
| UPS bypass | <50ms |
| Physical | |
| Enclosure | Metal spraying |
| Form factor | Portable or wall-mounted |
| Dimensions | 450*226.5*335mm |
| Net weight | 34.2kg |
| Gross weight | 35.9kg |
| Display | 3 LEDs |
| Environment | |
| Charge temperature | -10~40 ℃ |
| Storage temperature | -15~60℃ |
| Humidity | 20~95%RH |
| Operating noise | <50dB |
| Storage humidity | 5-95%RH |
| Commercial | |
| MOQ | one 20-foot container per model |
| Warranty | 24 months; see order terms |
| Packaging & logistics | |
| Carton dimensions | 500*305*415 |
