B SERIESLiFePO4
MODEL: lite EU B1000S · Series: B Series Mini ESS
lite EU B1000S

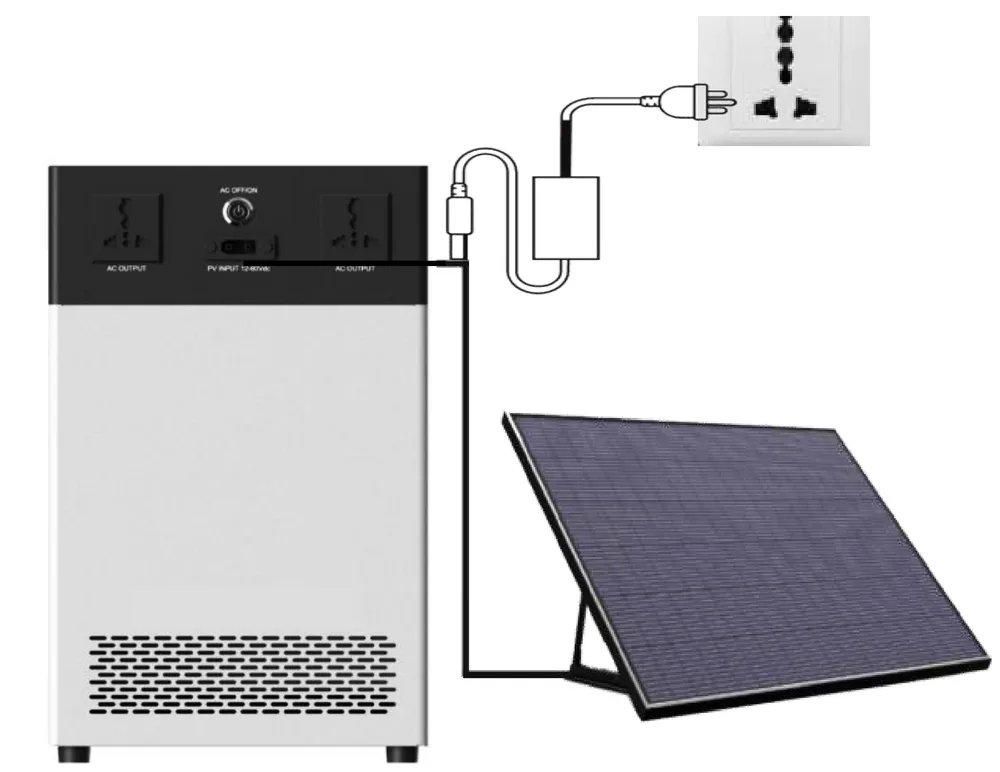

The lite EU B1000S is an integrated Mini ESS for portable home backup. Capacity is 2000Wh; rated AC output is 700W pure sine wave. Charging inputs are XT90 PV / AC-DC adapter input, 12–60V, maximum 400W; USB-C PD45W charging. Interfaces: USB-A: USB OUTPUT / QC3.0，support QC,AFC,FCP 5V3A/9V2A/12V1.5A; USB-C: PD45W，support PD,QC,AFC,FCP; DC output: DC12V OUTPUT / 12V/5A. Use it with appliances and digital devices whose combined demand stays within 700W.
CAPACITY2000Wh
RATED OUTPUT700W
PV MAX INPUT400W
CELL CHEMISTRYLiFePO4
SOURCING TERMS
Direct manufacturer20-ft containerMOQ PER MODEL
250,000 unitsANNUAL CAPACITY
20,000 unitsMONTHLY OUTPUT
Sampling and production lead times are confirmed per enquiry.
Confirm model MOQCompare modelsProduct documentationlite EU B1000S Product ManualEnglish PDF · Opens in a new tabView or download
✓ LiFePO4 cells✓ Pure sine wave output✓ Solar + AC charging
Technical specifications
B1000S specifications
| Parameter | Specification |
|---|---|
| AC output | |
| Rated output | 700W |
| Surge output | 1000W |
| Waveform | Pure sine wave |
| AC voltage | 220V |
| AC frequency | 50HZ/60HZ |
| USB-A | USB OUTPUT / QC3.0，support QC,AFC,FCP 5V3A/9V2A/12V1.5A |
| USB-C | PD45W，support PD,QC,AFC,FCP |
| DC output | DC12V OUTPUT / 12V/5A |
| Battery | |
| Rated capacity | 2000Wh |
| Chemistry | LiFePO4 |
| Cycle life | ≥6000 cycles |
| Charging & input | |
| PV input voltage | 12–60V |
| PV max input | 400W |
| PV connector | XT90 |
| Physical | |
| Enclosure | Metal |
| Form factor | Portable |
| Dimensions | 225mm*220mm*366mm |
| Net weight | ≈19Kg |
| Environment | |
| Charge temperature | WORK ENVIRONMENT / 0°C~45°C |
| Commercial | |
| MOQ | one 20-foot container per model |
| Warranty | 18 months; see order terms |
