US SERIESLiFePO4
MODEL: lite US A300C · Series: US Mini ESS

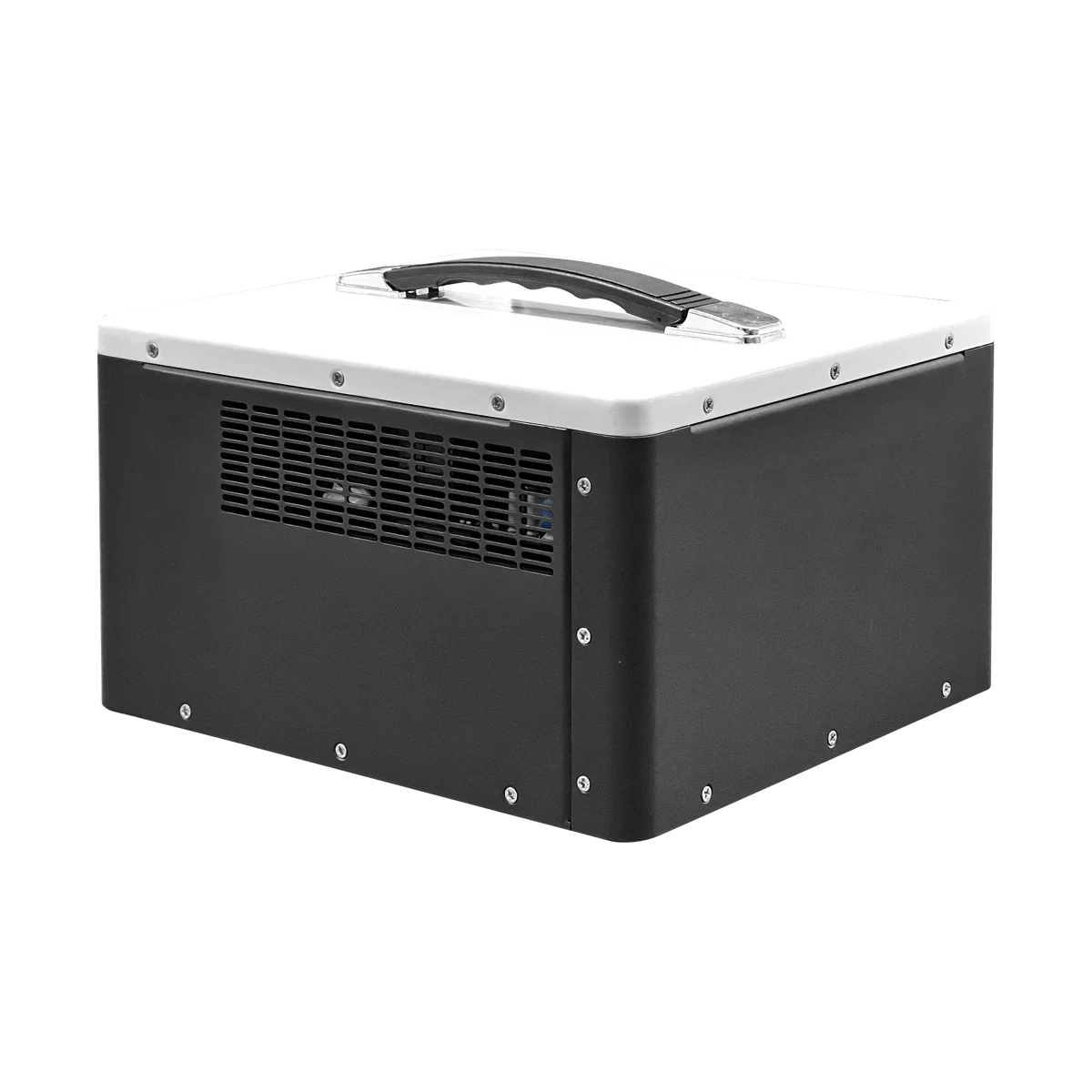

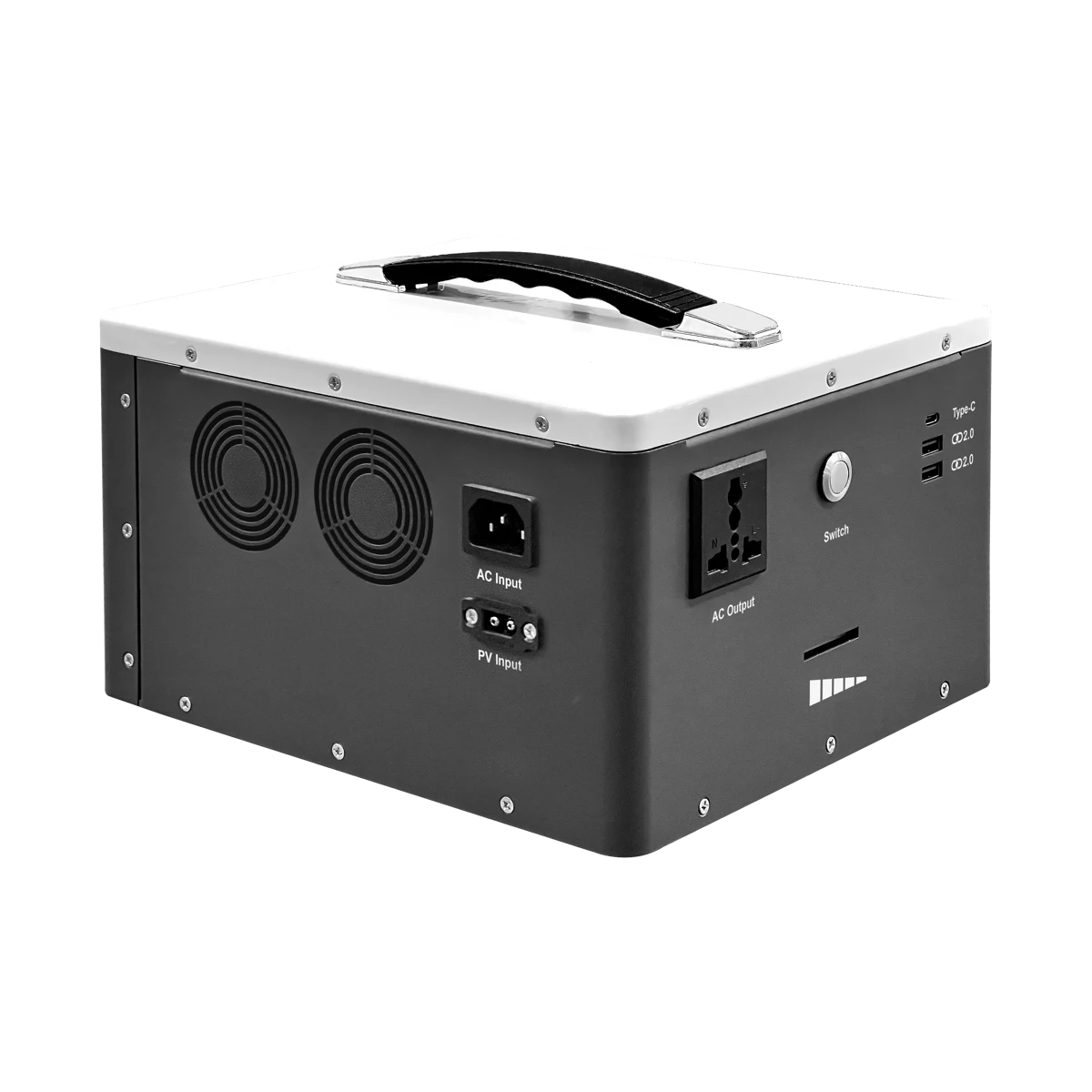

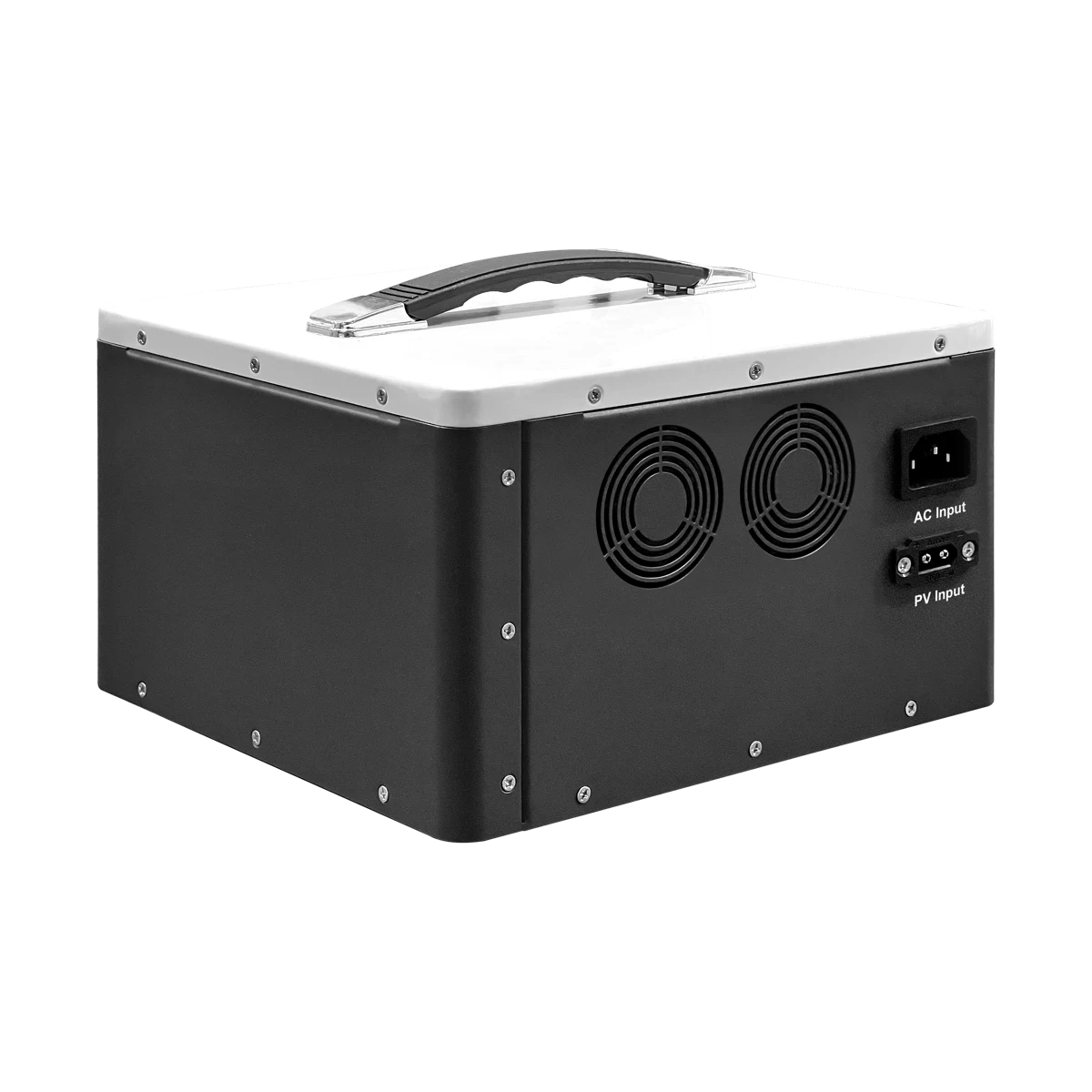

lite US A300C
Designed for household use and portable outdoor power, the lite US A300C combines 800Wh LiFePO4 storage with 300W pure sine wave output at 100–120V, 60Hz. Charge from an 85–135V AC supply or 12–60V solar panels with up to 250W PV input.
CAPACITY800Wh
RATED OUTPUT300W
PV MAX INPUT250W
CELL CHEMISTRYLiFePO4
SOURCING TERMS
Direct manufacturer20-ft containerMOQ PER MODEL
250,000 unitsANNUAL CAPACITY
20,000 unitsMONTHLY OUTPUT
Sampling and production lead times are confirmed per enquiry.
Confirm model MOQCompare modelsProduct documentationlite US A300C Product ManualEnglish PDF · Opens in a new tabView or download
✓ LiFePO4 cells✓ Pure sine wave output✓ Solar + AC charging
Technical specifications
US-A300C specifications
| Parameter | Specification |
|---|---|
| AC output | |
| Rated output | 300W |
| Waveform | Pure sine wave |
| AC voltage | 100–120V |
| AC frequency | 60Hz |
| USB-A | 5V / 1A and 5V / 2A |
| USB-C | PD 20W |
| Battery | |
| Rated capacity | 800Wh |
| Chemistry | LiFePO4 |
| Cycle life | ≥6000 cycles |
| Charging & input | |
| PV input voltage | 12–60V |
| PV max input | 250W |
| AC input range | 85–135V (60Hz) |
| AC max charge | 300W |
| Charging modes | AC / PV |
| UPS bypass | EPS transfer <50ms |
| Physical | |
| Enclosure | Powder-coated metal |
| Form factor | Portable |
| Dimensions | 250 × 230 × 175mm |
| Net weight | 10kg |
| Gross weight | 10.8kg |
