A SERIESLiFePO4
MODEL: lite EU A1000S · Series: A Series Mini ESS
lite EU A1000S

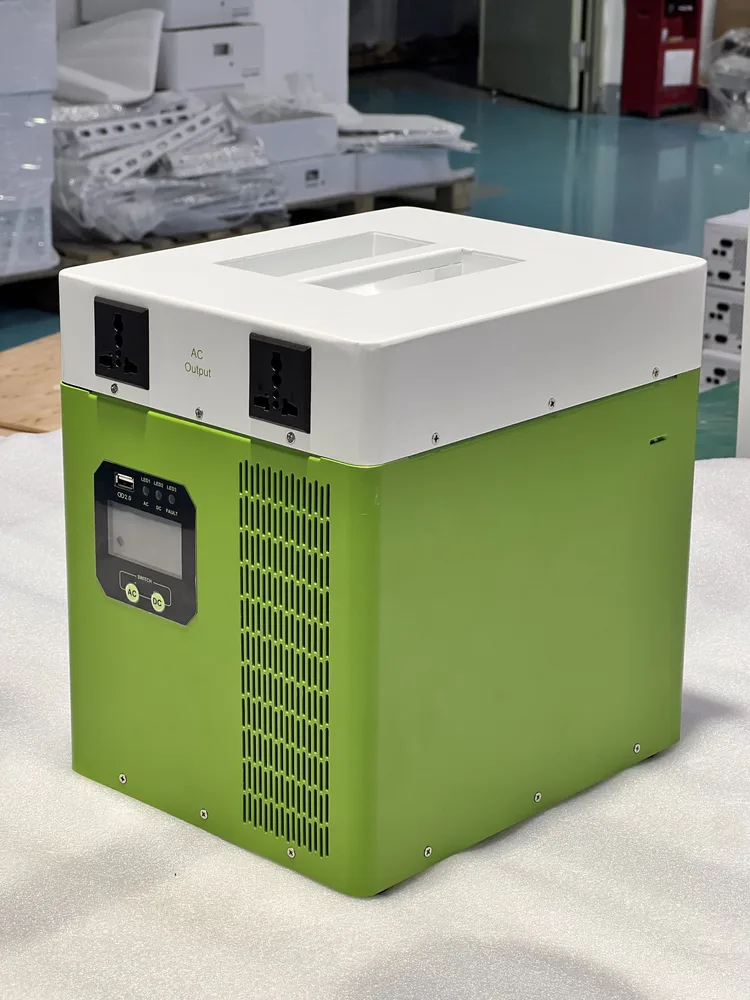

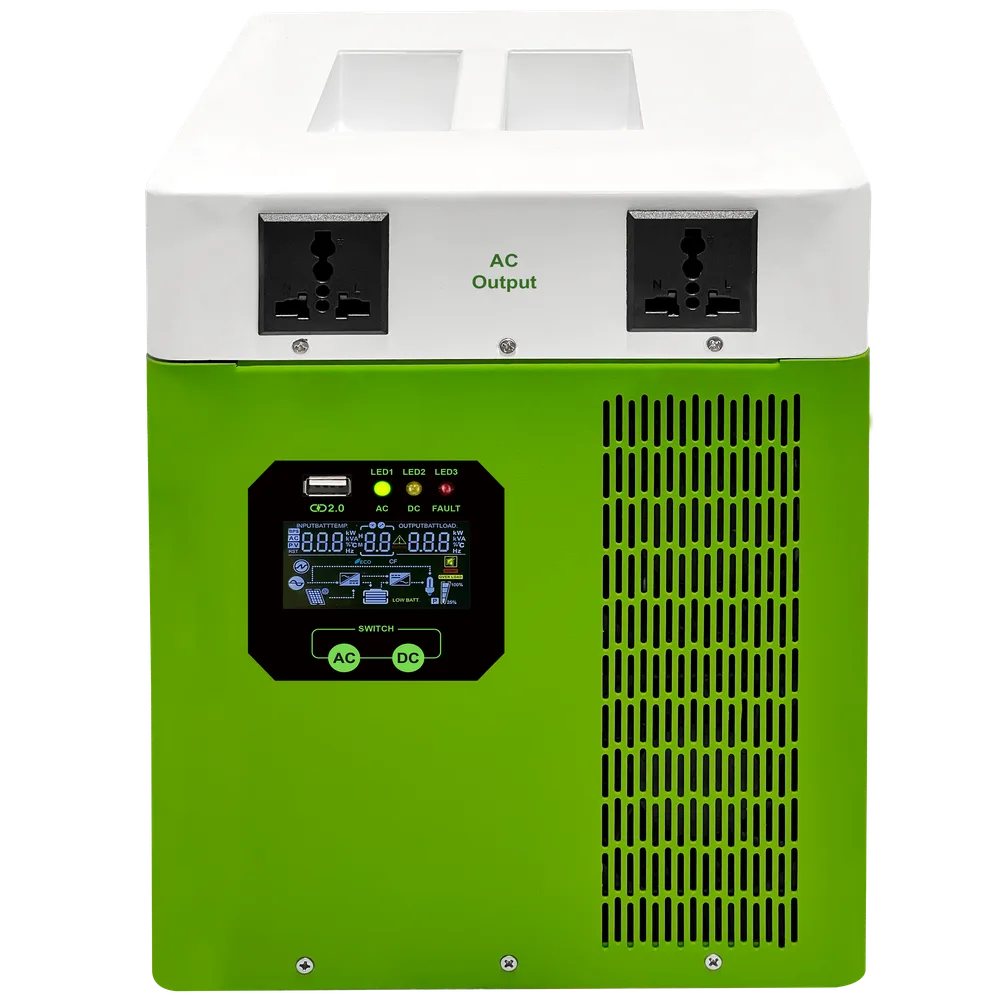

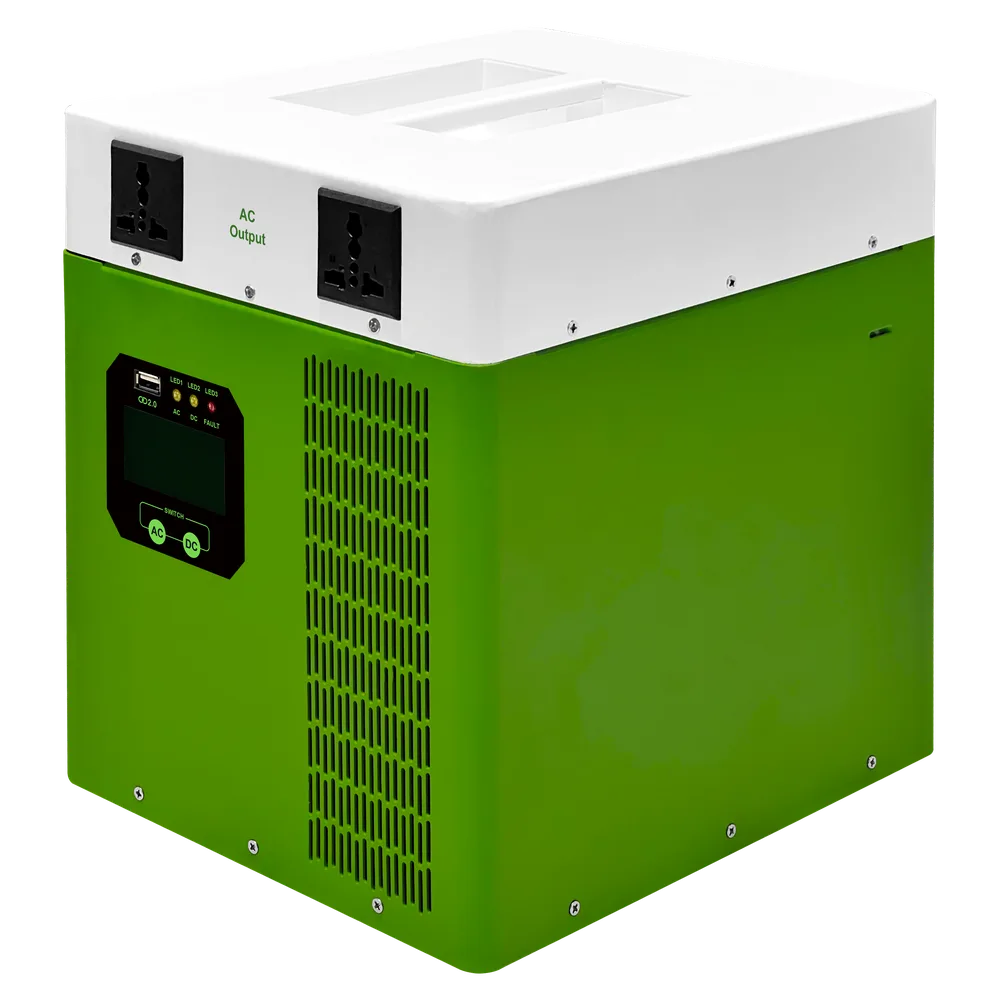

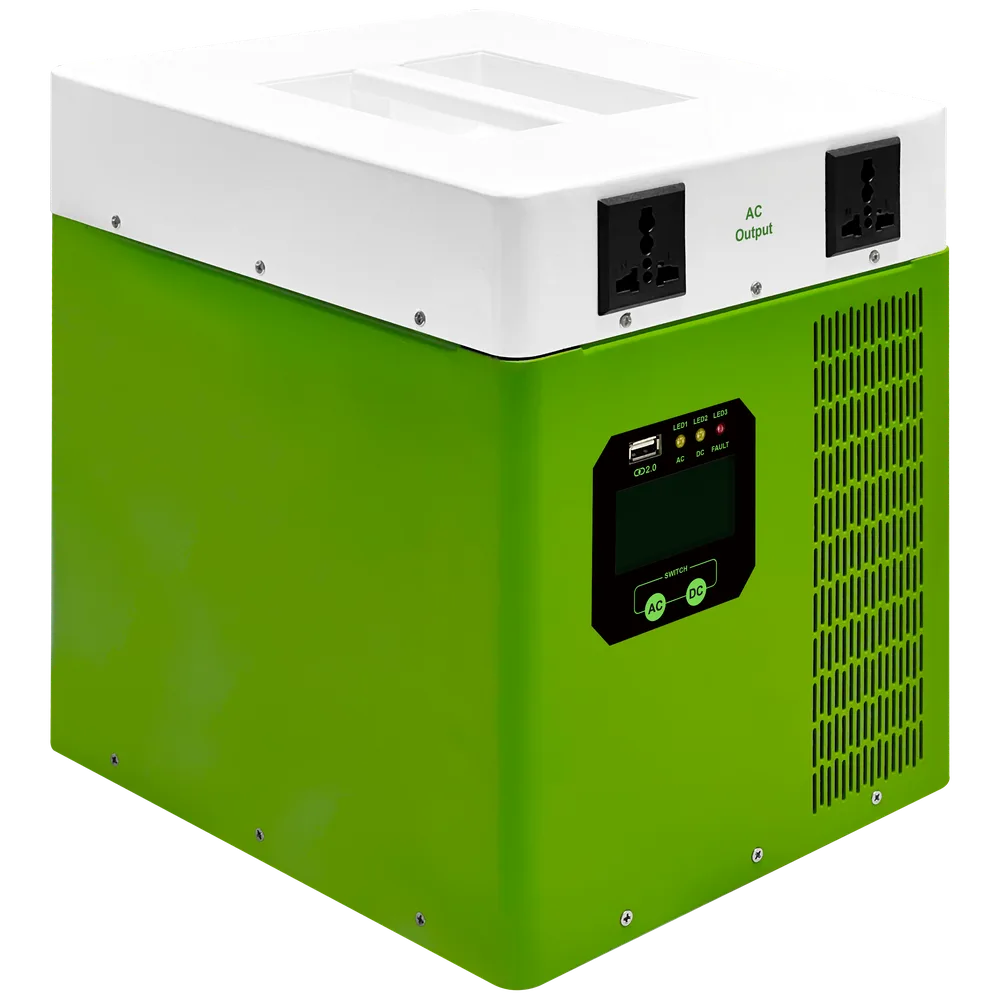

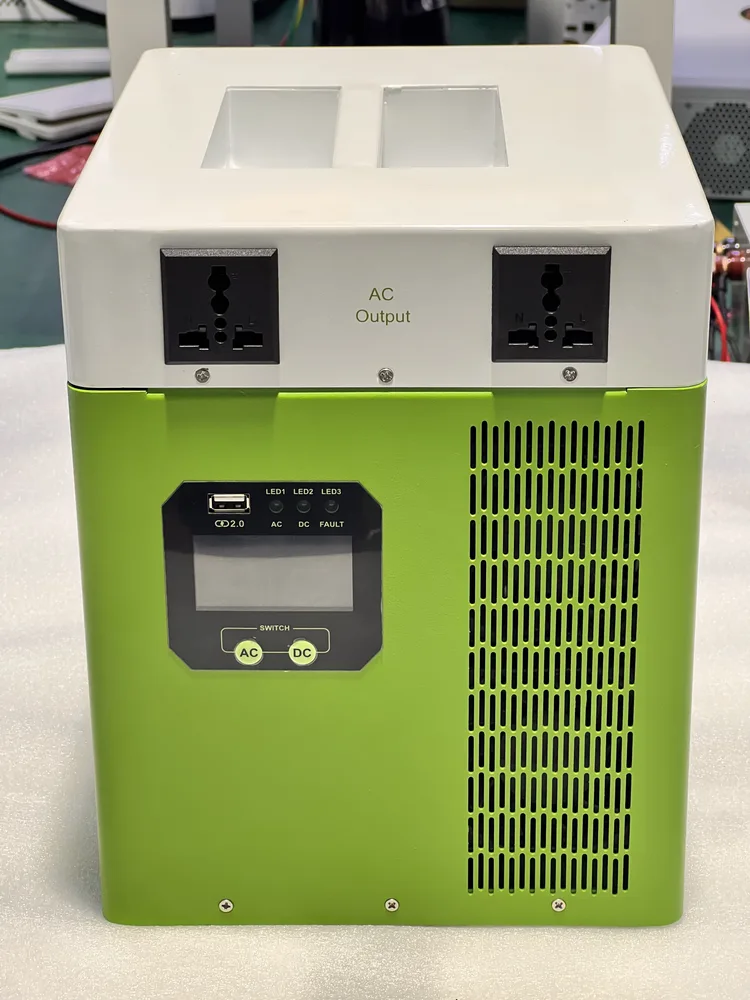

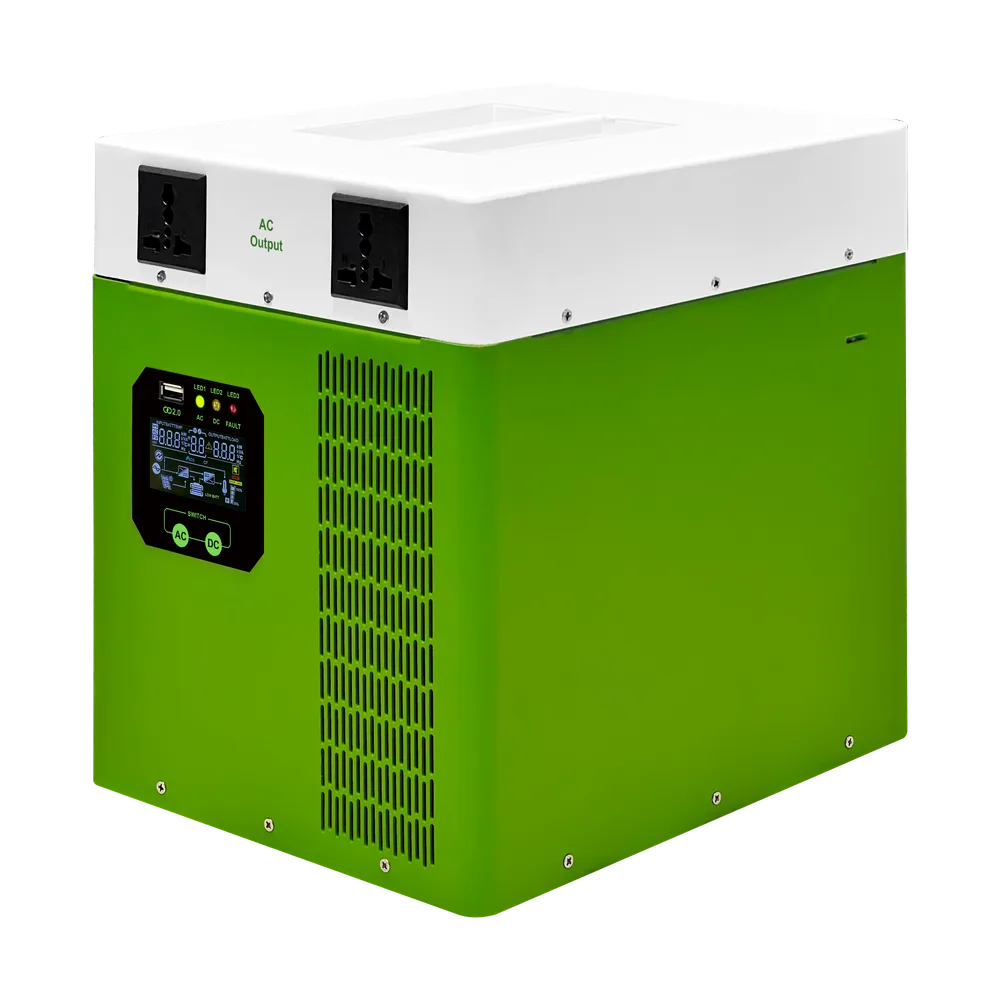

The lite EU A1000S is an integrated Mini ESS for portable home backup. Capacity is 2000Wh; rated AC output is 1000W pure sine wave at 220V and 50HZ/60HZ. Charging inputs are PV 12-60V, maximum 550W; AC 90-280V, maximum 1000W. Interfaces: USB-A: 2.0 Charging port. Use it with appliances and digital devices whose combined demand stays within 1000W.
CAPACITY2000Wh
RATED OUTPUT1000W
PV MAX INPUT550W
CELL CHEMISTRYLiFePO4
SOURCING TERMS
Direct manufacturer20-ft containerMOQ PER MODEL
250,000 unitsANNUAL CAPACITY
20,000 unitsMONTHLY OUTPUT
Sampling and production lead times are confirmed per enquiry.
Confirm model MOQCompare modelsProduct documentationlite EU A1000S Product ManualEnglish PDF · Opens in a new tabView or download
✓ LiFePO4 cells✓ Pure sine wave output✓ Solar + AC charging
Technical specifications
A1000S specifications
| Parameter | Specification |
|---|---|
| AC output | |
| Rated output | 1000W |
| Waveform | Pure Sine Wave |
| AC voltage | 220V |
| AC frequency | 50HZ/60HZ |
| Inverter efficiency | >86% |
| AC socket type | Global Specification |
| USB-A | 2.0 Charging port |
| Battery | |
| Rated capacity | 2000Wh |
| Chemistry | LiFePO4 |
| Cycle life | ≥10000 cycles |
| Charging & input | |
| PV input voltage | 12-60V |
| PV max input | 550W |
| AC input range | 90-280V |
| AC max charge | 1000W |
| Mains charging efficiency | >95% |
| Charging modes | AC / PV Charger |
| UPS bypass | <50ms |
| Physical | |
| Enclosure | Metal spraying |
| Form factor | Portable |
| Dimensions | 280*230*285mm |
| Net weight | 18.5kg |
| Gross weight | 20.1kg |
| Display | 3 LEDs |
| Environment | |
| Charge temperature | -10~40 ℃ |
| Storage temperature | -15~60℃ |
| Humidity | 20~95%RH |
| Operating noise | <50dB |
| Storage humidity | 5-95%RH |
| Commercial | |
| MOQ | one 20-foot container per model |
| Warranty | 18 months; see order terms |
| Packaging & logistics | |
| Carton dimensions | 330*280*350 |
